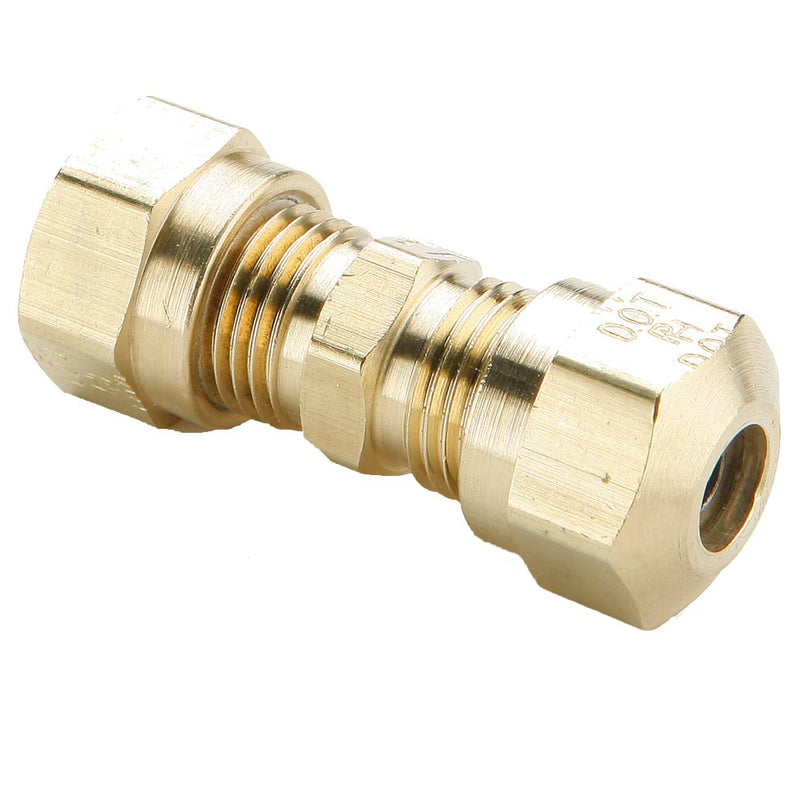

62NTA-4 by Parker | Air Brake–NTA® Fittings | Union | 1/4" Tube Size x 7/16" Thread | 9/16" Hex B | 7/16" Hex C | 1.49" Length | Straight | Brass | Pack of 10

62NTA-4 by Parker | Air Brake–NTA® Fittings | Union | 1/4" Tube Size x 7/16" Thread | 9/16" Hex B | 7/16" Hex C | 1.49" Length | Straight | Brass | Pack of 10

Save $8.34 Save $8.34
$91.71
$91.71 - $91.71
$91.71
$83.37
$83.37 - $83.37
$83.37

by Parker Hannifin
Air Brake–NTA® Fittings:Union 62NTA

Package Quantity: 10 Units

Specifications for Variant SKU: 62NTA-4 Parker | 10 |
Brand: Air Brake–NTA®
Series: 62NTA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Straight Thread Hex (B) Hex (C) L M Flow Diameter (D)
62NTA-4 1/4" 7/16"-24 9/16" 7/16" 1.49" .83" .137"
62NTA-6 3/8" 17/32"-24 5/8" 9/16" 2.00" 1.08" .217"
62NTA-8 1/2" 11/16"-20 13/16" 11/16" 2.32" 1.29" .338"
62NTA-10 5/8" 13/16"-18 15/16" 13/8" 2.39" 1.41" .398"
62NTA-12 3/4" 1"-18 1-1/8" 1" 2.60" 1.58" .523"
