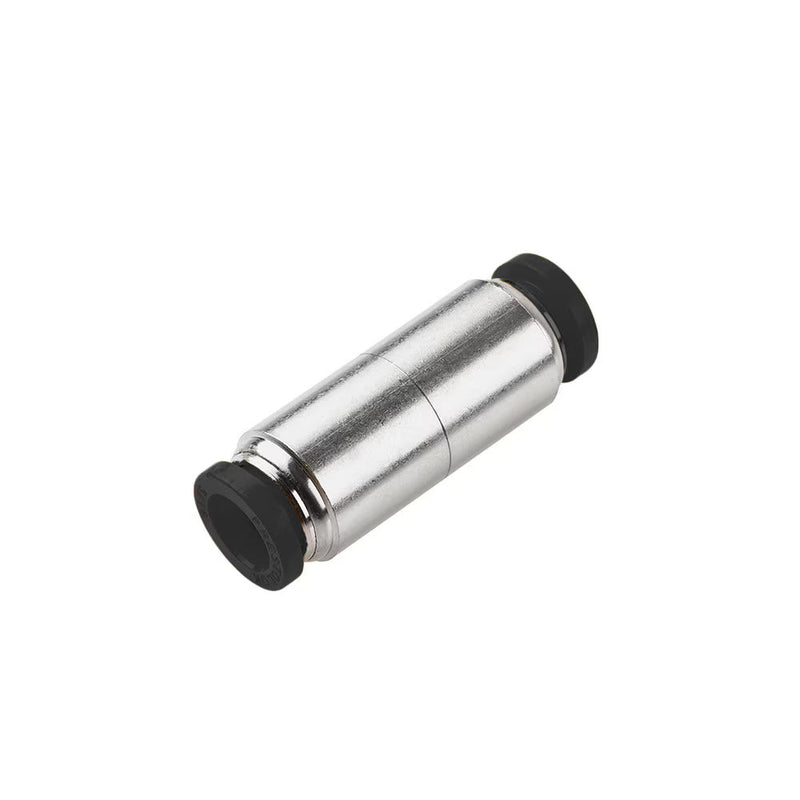

62PLP-3 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube | 3/16" Union Tube Size | .437" O.D | 1.41" Length | .156" Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

62PLP-3 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube | 3/16" Union Tube Size | .437" O.D | 1.41" Length | .156" Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $6.81 Save $6.81
$74.92
$74.92 - $74.92
$74.92
$68.11
$68.11 - $68.11
$68.11

by Parker Hannifin
Push-to-Connect Fittings: 62PLP Union – Inch

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLP-3 Parker | 10 |
Series: 62PLP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size (In) O.D. Length (L) Flow Diameter (D)
62PLP-2 1/8" .375" 1.40" .094"
62PLP-3 3/16" .437" 1.41" .156"
62PLP-5/32 5/32" .375" 1.41" .125"
62PLP-4 1/4" .500" 1.43" .188"
62PLP-5 5/16" .56275" 1.65" .250"
62PLP-6 3/8" .625" 1.66" .312"
62PLP-8 1/2" .750" 1.82" .375"
