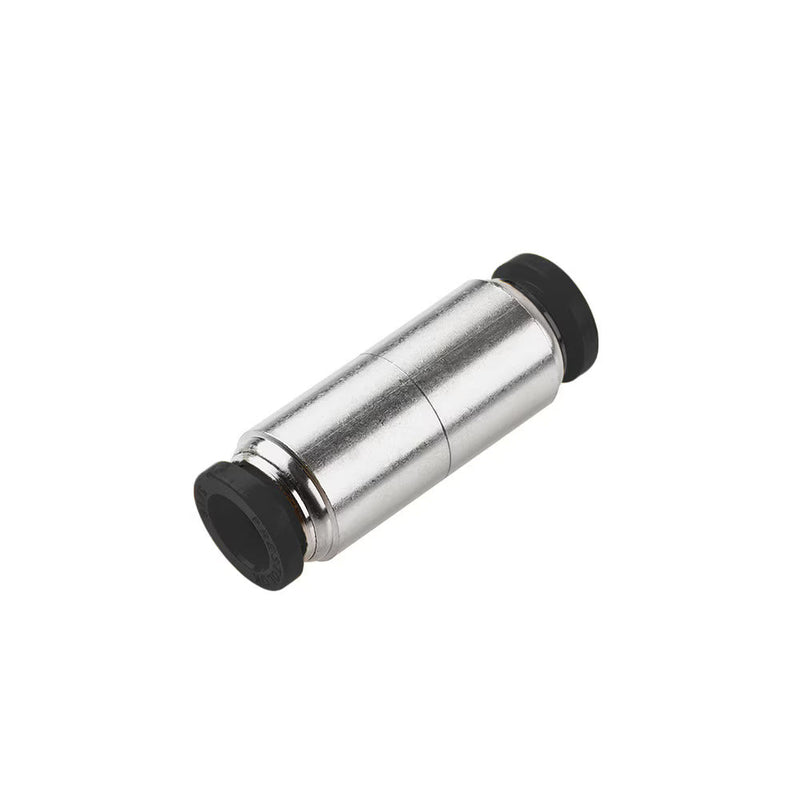

62PLP-4-6 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube | 1/4" Tube 1 Size x 3/8" Tube 2 Size Unequal Union | .625" O.D | 1.66" Length | .188" Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

62PLP-4-6 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube | 1/4" Tube 1 Size x 3/8" Tube 2 Size Unequal Union | .625" O.D | 1.66" Length | .188" Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $72.39 Save $72.39
$180.98
$180.98 - $180.98
$180.98
$108.59
$108.59 - $108.59
$108.59

by Parker Hannifin
Push-to-Connect Fittings:62PLP Unequal Union – Inch

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLP-4-6 Parker | 10 |
Series: 62PLP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
62PLP_Inch_Series_Table_Photo
Part Number Tube Size 1 Tube Size 2 O.D. Length (L) Flow Diameter (D)
62PLP-5/32-2 5/32" 1/8" .375" 1.41" .094"
62PLP-4-2 1/4" 1/8" .500" 1.43" .094"
62PLP-4-5/32 1/4" 5/32" .500" 1.43" .125"
62PLP-4-6 1/4" 3/8" .500" 1.66" .188"
62PLP-6-8 3/8" 1/2" .750" 1.82" .312"
