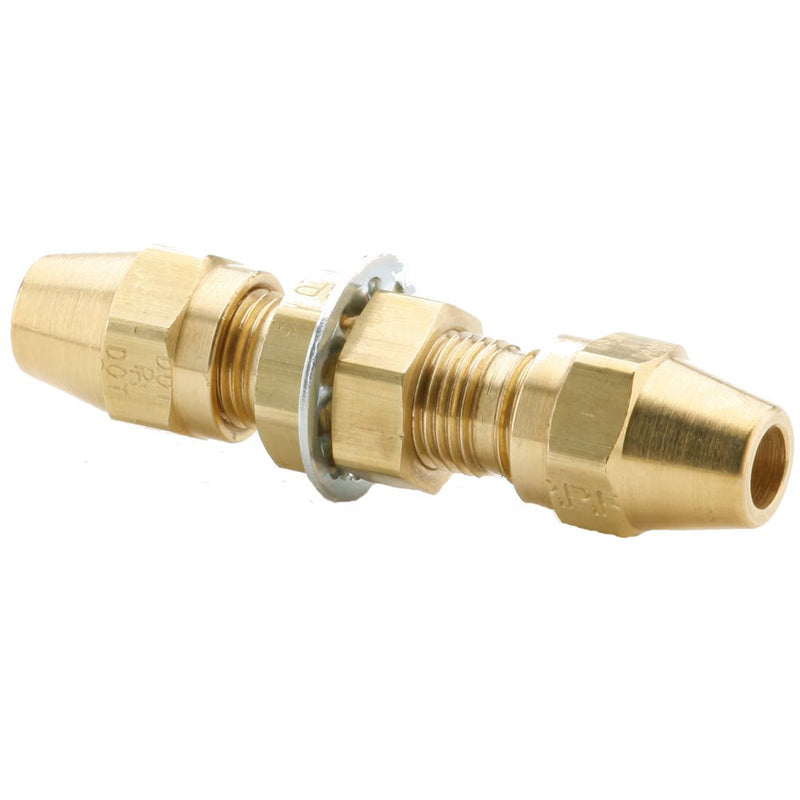

62ABH-4 by Parker | Air Brake - AB Fittings | Bulkhead Union | 1/4" Tube Size x 7/16" Thread | 9/16" Hex | 2.53" Length | Straight | Brass | Pack of 25

Save $66.77

$580.44

$580.44 - $580.44

$580.44

$513.67

$513.67 - $513.67

$513.67

by Parker Hannifin
Air Brake – AB Fittings:Bulkhead Union 62ABH

Package Quantity: 25 Units

Specifications for Variant SKU: 62ABH-4 Parker \| 25 \|
Series:	62ABH Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, Reuseable

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 Reusable Pre-applied Thread Sealant
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Copper Air Brake Lines Coolant Lines Fuel Lines
Pressure Range:	Up to 400 PSI (27.5 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:	Copper Air Brake Tubing


Part Number	Tube Size	Straight Thread	Hex (C)	L	M	Flow Diameter (D)	Bulkhead Hole Diameter
62ABH-4	1/4"	7/16"-24	9/16"	2.53"	1.38"	.188"	7/16"
62ABH-6	3/8"	17/32"-24	3/4"	3.41"	1.62"	.314"	17/32"
62ABH-8	1/2"	11/16"-20	1"	3.80"	1.88"	.408"	11/16"
