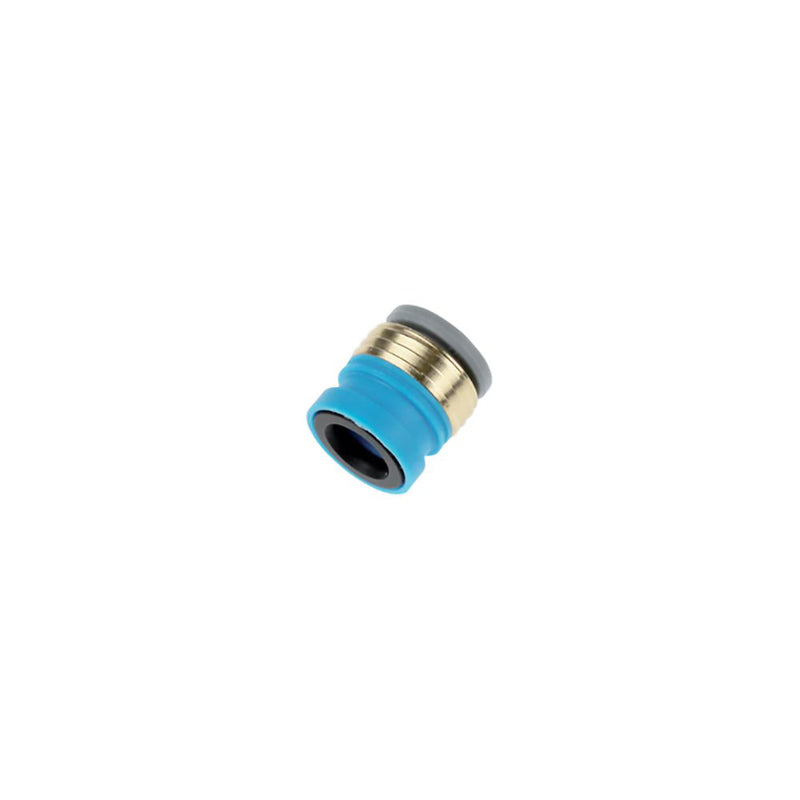

6300 04 00 by Parker | LIQUIfit Cartridge | 4 mm OD | 10 mm Length | Brass

6300 04 00 by Parker | LIQUIfit Cartridge | 4 mm OD | 10 mm Length | Brass | Pack of 50

Save $11.89 Save $11.89
$73.22
$73.22 - $73.22
$73.22
$61.33
$61.33 - $61.33
$61.33

by Parker Hannifin
Cartridges:6300 LIQUIfit Cartridge Brass Metric

Package Quantity: 50 Units

Specifications for Variant SKU: 6300 04 00 Parker | 50 |
Brand: LIQUIfit®
Series: 6300 Series
Shape (Orientation): No Orientation
Material(s): Plastic, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Life Science
Product Features:
  • Self-centering of the cartridge in the cavity
  • Push-in connection
  • Designed for automation assembly process
  • SAE & NSF cartridges available
Markets:
  • Industrial
  • Pneumatic
  • Filtration
  • Semi-Conductor
    • C
  • Life Science
  • Automation
  • Heavy Duty Truck
Applications:
  • Air
  • Water
  • Beverage Dispensing
  • Cab Controls
  • Packaging
  • Labeling
  • Vacuum
Specifications:
Seals Pressure Temperature
Carstick Nitrile Up to 290 PSI (20 bar) -4° to +175° F (-20° to +79.4° C)
PLM/PLS FKM Up to 435 PSI (30 bar) -13° to +302° F (-25° to +150° C)
LIQUIfit EPDM Up to 230 PSI (15.9 bar) 35° to +200° F (+1.7° to +93.3° C)
TrueSeal EPDM Up to 150 PSI (10.3 bar) -20° to +180° F (-28.9° to +82.2° C)
PTC Nitrile Up to 250 PSI (17.2 bar) -40° to +200° F (-40° to +93.3° C
Part Number OD G G1 H L KG
6300 04 00 4 mm 8 mm 11 mm 10 mm 554 mm .002 kg
6300 06 00 6 mm 10 mm 14.5 mm 11.5 mm 629 mm .002 kg
6300 08 00 8 mm 13 mm 15 mm 15 mm 794 mm .003 kg
6300 10 00 10 mm 15.5 mm 19.5 mm 17 mm 930 mm .005 kg
6300 12 00 12 mm 18.5 mm 21 mm 19.5 mm 1038 mm .010 kg

50 cartridges per Carstick®

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
