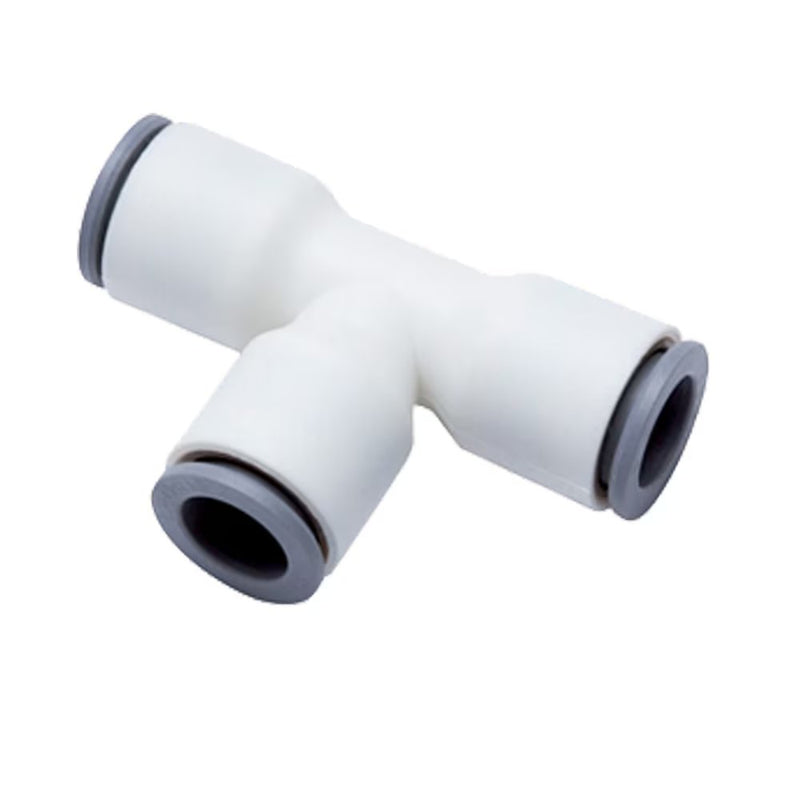

6304 12 00WP2 by Parker | Legris Union Tube-to-Tube Fitting | 12 mm Tube Size x 12 mm Tube Size | 62 mm Length | Tee | Polymer

6304 12 00WP2 by Parker | Legris Union Tube-to-Tube Fitting | 12mm Tube Size x 12mm Tube Size | 62mm Length | Tee | Polymer | Pack of 5

Save $18.40 Save $18.40
$46.00
$46.00 - $46.00
$46.00
$27.60
$27.60 - $27.60
$27.60

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6304 Union Tee

Package Quantity: 5 Units

Specifications for Variant SKU: 6304 12 00WP2 Parker | 5 |
Brand: LIQUIfit®
Series: 6304 Series
Shape (Orientation): Tee
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H L/2 Kg
6304 04 00WP2 4 mm 4 mm 8.5 mm 20 mm 15.5 mm .004 Kg
6304 06 00WP2 6 mm 6 mm 10.5 mm 23 mm 18 mm .006 Kg
6304 08 00WP2 8 mm 8 mm 13.5 mm 29 mm 22.5 mm .006 Kg
6304 10 00WP2 10 mm 10 mm 16 mm 34.5 mm 26.5 mm .004 Kg
6304 12 00WP2 12 mm 12 mm 19 mm 40 mm 31 mm .014 Kg
