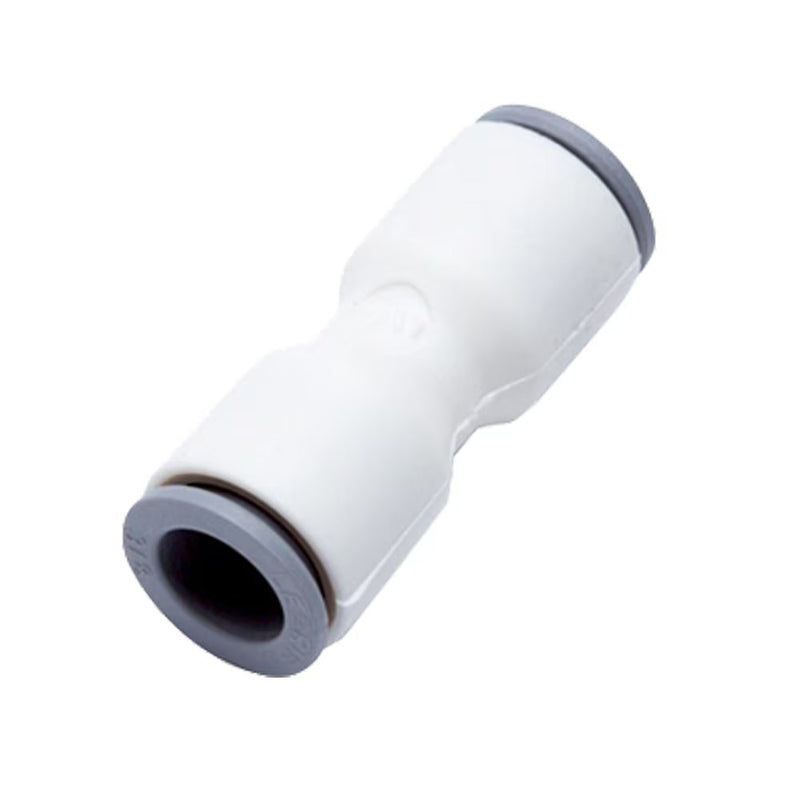

6306 04 08WP2 by Parker | Legris Tube-to-Tube Connector | 4 mm Tube Size x 8 mm Tube Size | 37 mm Length | Straight | Polymer | Pack of 10

Save $45.07

$112.67

$112.67 - $112.67

$112.67

$67.60

$67.60 - $67.60

$67.60

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6306 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 6306 04 08WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6306 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	G1	L	Kg
6306 04 00WP2	4 mm	4 mm	-	8.5 mm	26.5 mm	.002 Kg
6306 04 06WP2	4 mm	6 mm	-	10.5 mm	29 mm	.002 Kg
6306 04 08WP2	4 mm	8 mm	-	13.5 mm	37 mm	.005 Kg
6306 06 00WP2	6 mm	6 mm	-	10.5 mm	30 mm	.004 Kg
6306 06 08WP2	6 mm	8 mm	10.6 mm	13.5 mm	34,1 mm	.005 Kg
6306 06 10WP2	6 mm	10 mm	-	16 mm	42 mm	.007 Kg
6306 08 00WP2	8 mm	8 mm	-	13.5 mm	37 mm	.004 Kg
6306 08 10WP2	8 mm	10 mm	-	16 mm	42 mm	.007 Kg
6306 08 12WP2	8 mm	12 mm	-	19 mm	50 mm	.012 Kg
6306 10 00WP2	10 mm	10 mm	-	16 mm	42 mm	.009 Kg
6306 10 12WP2	10 mm	12 mm	-	19 mm	50 mm	.013 Kg
6306 12 00WP2	12 mm	12 mm	-	19 mm	50.5 mm	.009 Kg
