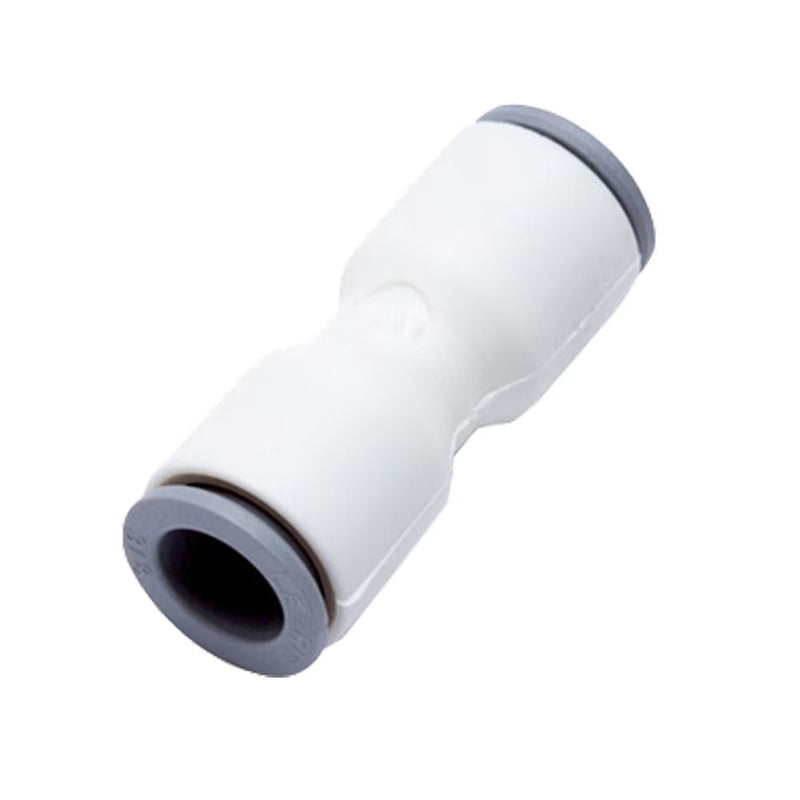

6306 06 00WP2 by Parker | Legris Tube-to-Tube Connector | 6 mm Tube Size x 6 mm Tube Size | 30 mm Length | Straight | Polymer | Pack of 10

Save $13.51

$33.78

$33.78 - $33.78

$33.78

$20.27

$20.27 - $20.27

$20.27

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6306 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 6306 06 00WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6306 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	G1	L	Kg
6306 04 00WP2	4 mm	4 mm	-	8.5 mm	26.5 mm	.002 Kg
6306 04 06WP2	4 mm	6 mm	-	10.5 mm	29 mm	.002 Kg
6306 04 08WP2	4 mm	8 mm	-	13.5 mm	37 mm	.005 Kg
6306 06 00WP2	6 mm	6 mm	-	10.5 mm	30 mm	.004 Kg
6306 06 08WP2	6 mm	8 mm	10.6 mm	13.5 mm	34,1 mm	.005 Kg
6306 06 10WP2	6 mm	10 mm	-	16 mm	42 mm	.007 Kg
6306 08 00WP2	8 mm	8 mm	-	13.5 mm	37 mm	.004 Kg
6306 08 10WP2	8 mm	10 mm	-	16 mm	42 mm	.007 Kg
6306 08 12WP2	8 mm	12 mm	-	19 mm	50 mm	.012 Kg
6306 10 00WP2	10 mm	10 mm	-	16 mm	42 mm	.009 Kg
6306 10 12WP2	10 mm	12 mm	-	19 mm	50 mm	.013 Kg
6306 12 00WP2	12 mm	12 mm	-	19 mm	50.5 mm	.009 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
