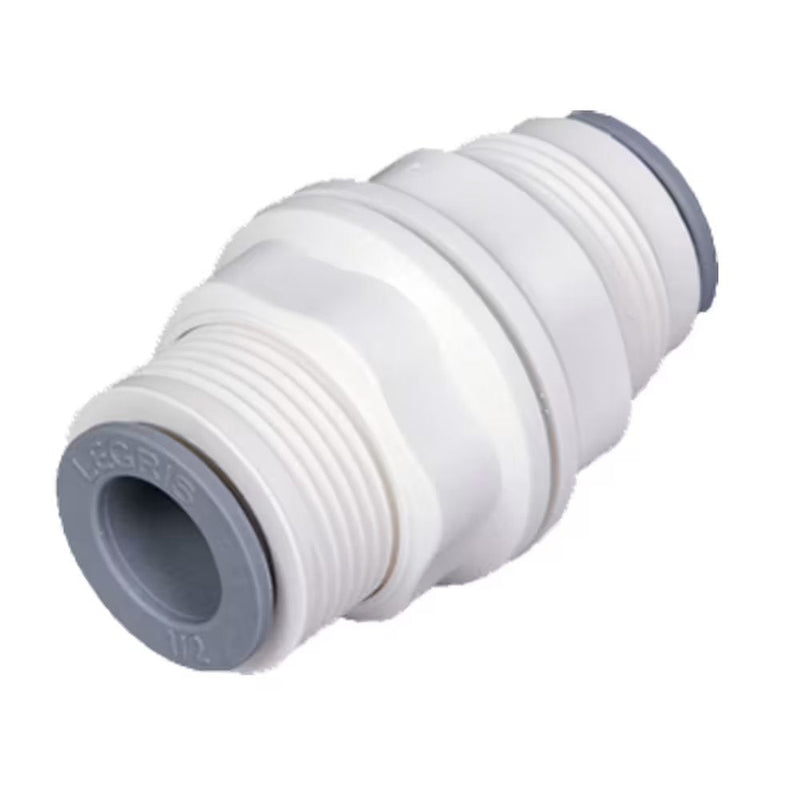

6316 10 00WP2 by Parker | Legris Bulkhead Connectors | 10 mm Tube Size | 43 mm Length | Straight | Polymer

Save $5.54

$12.59

$12.59 - $12.59

$12.59

$7.05

$7.05 - $7.05

$7.05

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6316 Equal Bulkhead Union

Specifications for Variant SKU: 6316 10 00WP2 Parker
Brand:	LIQUIfit®
Series:	6316 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	F	K (Max)	L	L1	ØT (Min)	Kg
6316 04 00WP2	4 mm	13 mm	5.5 mm	15.5 mm	10.5 mm	10.5 mm	.018 Kg
6316 06 00WP2	6 mm	15 mm	8.5 mm	20 mm	10 mm	12.5 mm	.004 Kg
6316 08 00WP2	8 mm	18 mm	14.5 mm	27 mm	10.5 mm	15.5 mm	.007 Kg
6316 10 00WP2	10 mm	22 mm	14.5 mm	30 mm	13 mm	18.5 mm	.012 Kg
