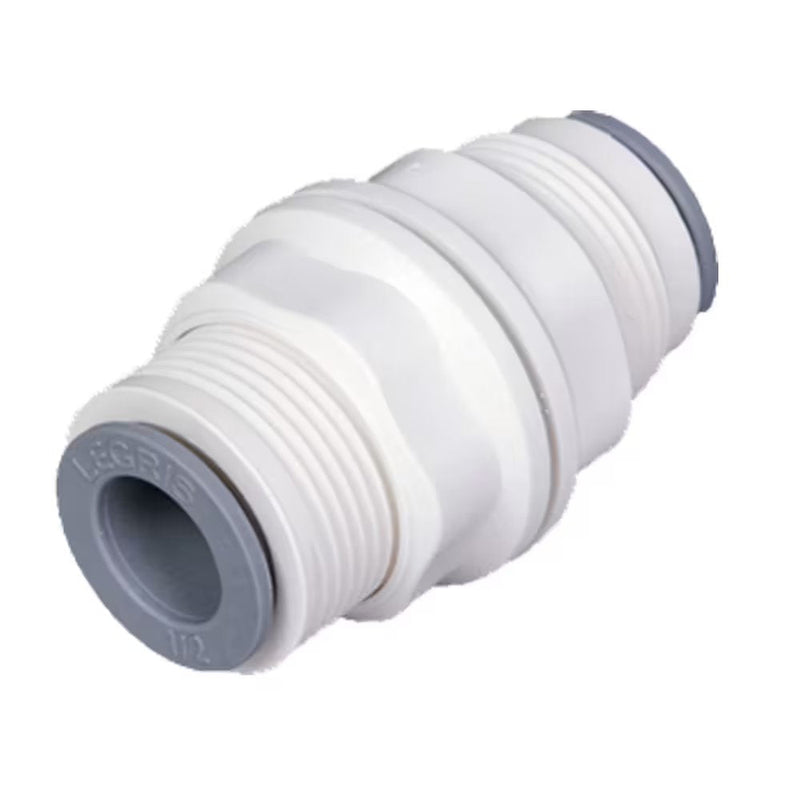

6316 62 00WP2 by Parker | Legris Bulkhead Connectors | 1/2" Tube Size | 57.5 mm Length | Straight | Polymer

6316 62 00WP2 by Parker | Legris Bulkhead Connectors | 1/2" Tube Size | 57.5 mm Length | Straight | Polymer | Pack of 5

Save $17.02 Save $17.02
$42.55
$42.55 - $42.55
$42.55
$25.53
$25.53 - $25.53
$25.53

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6316 Bulkhead Union

Package Quantity: 5 Units

Specifications for Variant SKU: 6316 62 00WP2 Parker | 5 |
Brand: LIQUIfit®
Series: 6316 Series
Shape (Orientation): Straight
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD F K (Max) L L1 ØT (Min) Kg
6316 56 00WP2 1/4" 15 mm 8.5 mm 20 mm 10 mm 12.5 mm .004 Kg
6316 60 00WP2 3/8" 2 mm 14.5 mm 29.5 mm 12.5 mm 18.5 mm .012 Kg
6316 62 00WP2 1/2" 29 mm 20.5 mm 40.5 mm 17 mm 25.5 mm .030 Kg

5/32” (4mm) and 5/16” (8mm) also available
