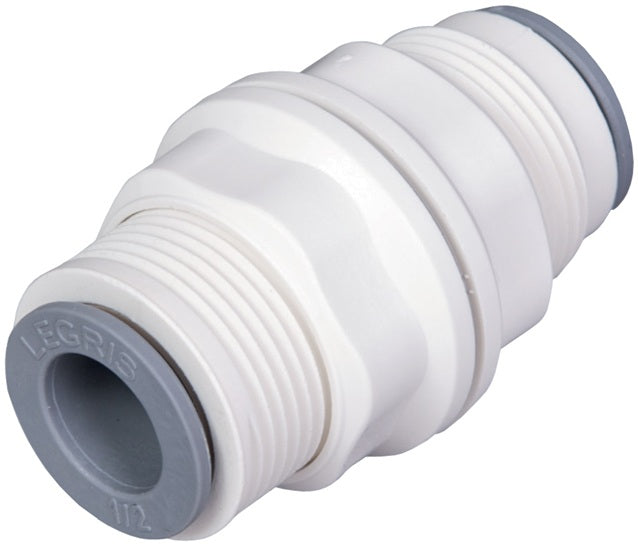

63166000WP2 by Dixon Valve | LIQUIfit™ Fitting | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Nylon

Name: 63166000WP2 by Dixon Valve | LIQUIfit™ Fitting | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Nylon
Brand: Dixon
SKU: 63166000WP2 Dixon
Price: 6.75 USD
Availability: InStock

Save $0.71

$7.46

$7.46 - $7.46

$7.46

$6.75

$6.75 - $6.75

$6.75

Dixon Valve
LIQUIfit™ Fitting | Bulkhead Union

Suitable for water, potable liquids, and neutral gas applications: including water filtration, water coolers, coffee machines, and beverage dispensers.

Quantity

Specifications for Variant SKU: 63166000WP2 Dixon
Brand:	LIQUIfit
Series:	6316Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	EPDM

Features:
EPDM seal secures connection with larger surface area than standard O-rings. Engineered polymer allows superior mechanical strength and chemical resistance. Full stainless gripping ring eliminates the need for locking clips. Release button protects and supports tubing.
Material:
Nylon
Approvals:
FDA compliant Meets California and Vermont <0.25% lead requirements NSF-51 listed for contact with food NSF-61 list C-Hot rated
Specifications:
Working Pressure: 1/4" 230 PSI from 35°F to 100°F (1.7°C to 38°C) 150 PSI at 150°F (66°C) 60 PSI at 200°F (93°C) 3/8" 190 PSI from 35°F to 100°F (1.7°C to 38°C) 100 PSI at 150°F (66°C) 60 PSI at 200°F (93°C) 1/2" 160 PSI from 35°F to 100°F (1.7°C to 38°C) 100 PSI at 150°F (66°C) 60 PSI at 200°F (93°C) Maximum torque values for NPTF threads: 1/8" and 1/4" 1.0 ft. lbs. / 1.5Nm 3/8" and 1/2" 2.2 ft. lbs. / 3.0Nm

Part Number	Tube O.D.
63165600WP2	1/4"
63166000WP2	3/8"
63166200WP2	1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
