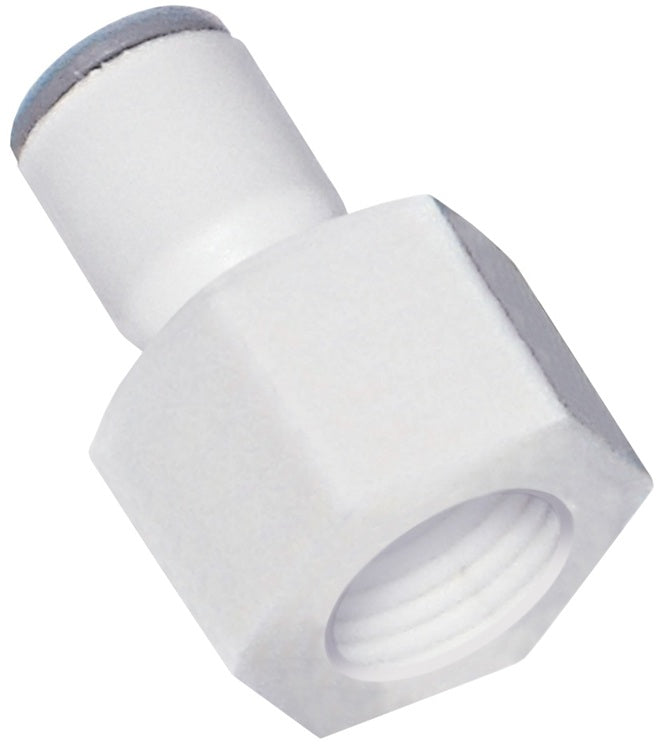

632556133WP2 by Dixon Valve | LIQUIfit™ Fitting | Faucet Connector | 7/16"-24 Female UNS x 1/4" Tube OD | Nylon

Save $2.46 Save $2.46
Original price $6.15
Original price $6.15 - Original price $6.15
Original price $6.15
Current price $3.69
$3.69 - $3.69
Current price $3.69

Dixon Valve
LIQUIfit™ Fitting | Faucet Connector

Suitable for water, potable liquids, and neutral gas applications: including water filtration, water coolers, coffee machines, and beverage dispensers.


Specifications for Variant SKU: 632556133WP2 Dixon
Brand: LIQUIfit
Series: 6325 Series
Shape (Orientation): Straight
Material(s): Nylon
Seal Material(s): EPDM
Features:
  • EPDM seal secures connection with larger surface area than standard O-rings.
  • Engineered polymer allows superior mechanical strength and chemical resistance.
  • Full stainless gripping ring eliminates the need for locking clips.
  • Release button protects and supports tubing.
Material:
  • Nylon
Approvals:
  • FDA compliant
  • Meets California and Vermont <0.25% lead requirements
  • NSF-51 listed for contact with food
  • NSF-61 list C-Hot rated
Specifications:
  • Working Pressure:
  • 1/4"
    • 230 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 150 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • 3/8"
    • 190 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 100 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • 1/2"
    • 160 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 100 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • Maximum torque values for NPTF threads:
    • 1/8" and 1/4" 1.0 ft. lbs. / 1.5Nm
    • 3/8" and 1/2" 2.2 ft. lbs. / 3.0Nm
Part Number Tube OD Female UNS
632556133WP2 1/4" 7/16"-24
632560133WP2 3/8" 7/16"-24
