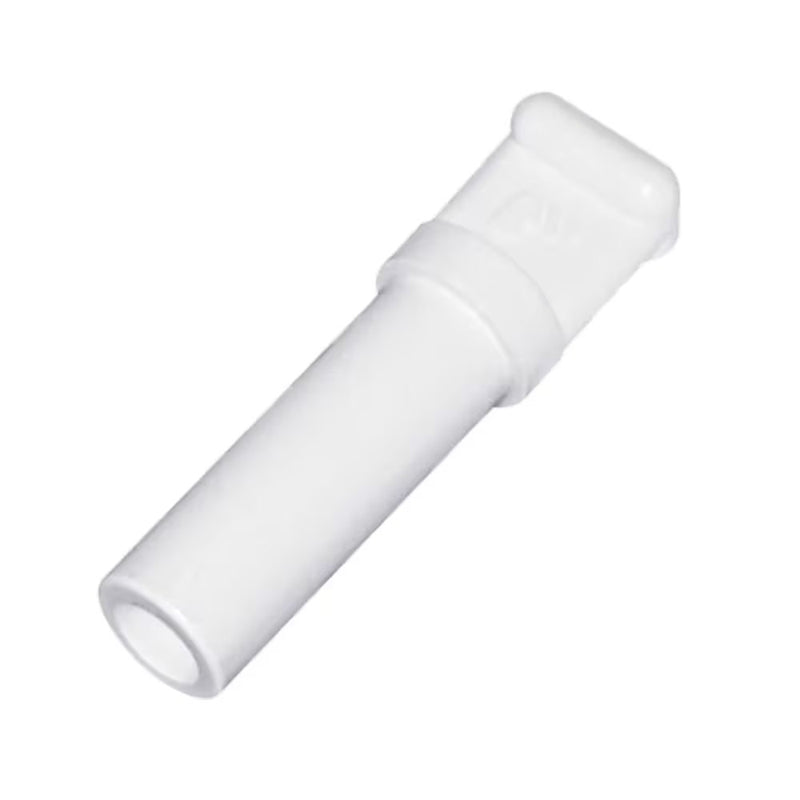

6326 10 00WP2 by Parker | Legris Blanking Plug | 10 mm Tube Size | 42 mm Length | Polymer

6326 10 00WP2 by Parker | Legris Blanking Plug | 10 mm Tube Size | 42 mm Length | Polymer

Save $2.31 Save $2.31
$3.94
$3.94 - $3.94
$3.94
$1.63
$1.63 - $1.63
$1.63

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6326 Blanking Plug
Specifications for Variant SKU: 6326 10 00WP2 Parker
Brand: LIQUIfit®
Series: 6326 Series
Shape (Orientation): No Orientation
Material(s): Polymer
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD G L L1 Kg
6326 04 00WP2 4 mm 6 mm 30 mm 15.5 mm .002 Kg
6326 06 00WP2 6 mm 8 mm 33 mm 16.5 mm .002 Kg
6326 08 00WP2 8 mm 10 mm 35 mm 17.5 mm .002 Kg
6326 10 00WP2 10 mm 12 mm 42 mm 21 mm .003 Kg
6326 12 00WP2 12 mm 14 mm 45 mm 22 mm .004 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
