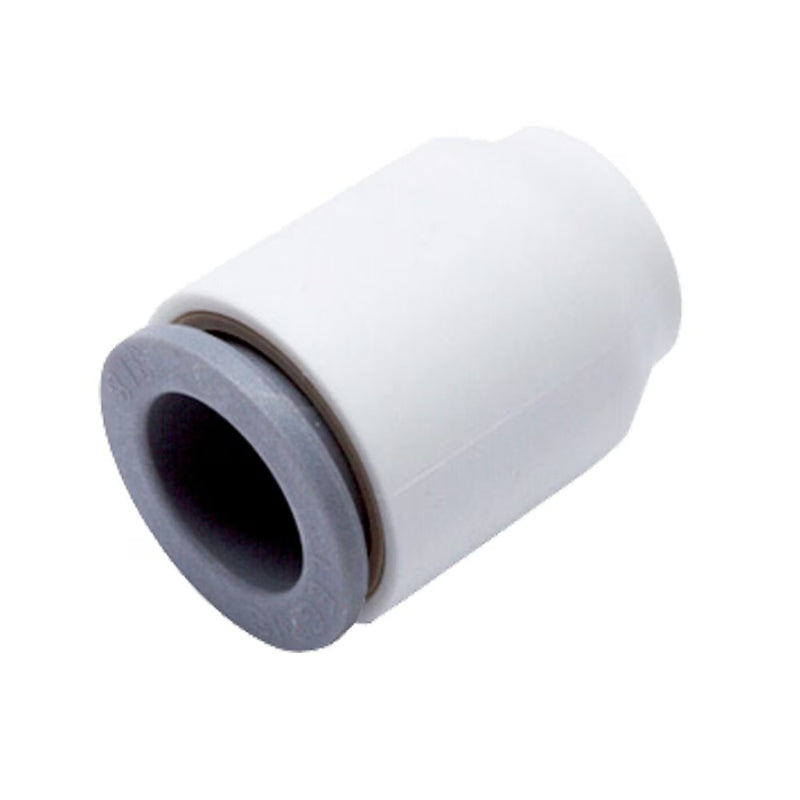

6351 04 00WP2 by Parker | Legris End Cap | 4 mm Cap | 15 mm Length | Polymer | Pack of 10

6351 04 00WP2 by Parker | Legris End Cap | 4 mm Cap | 15 mm Length | Polymer | Pack of 10

Save $13.15 Save $13.15
$32.88
$32.88 - $32.88
$32.88
$19.73
$19.73 - $19.73
$19.73

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6351 End Cap

Package Quantity: 10 Units

Specifications for Variant SKU: 6351 04 00WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6351 Series
Shape (Orientation): No Orientation
Material(s): Polymer
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD G H Kg
6351 04 00WP2 4 mm 8.5 mm 15 mm .001 Kg
6351 06 00WP2 66 mm 10.5 mm 17 mm .002 Kg
6351 08 00WP2 8 mm 13.5 mm 21.5 mm .003 Kg
6351 10 00WP2 10 mm 16 mm 22 mm .003 Kg
6351 12 00WP2 12 mm 19 mm 27.5 mm .006 Kg
