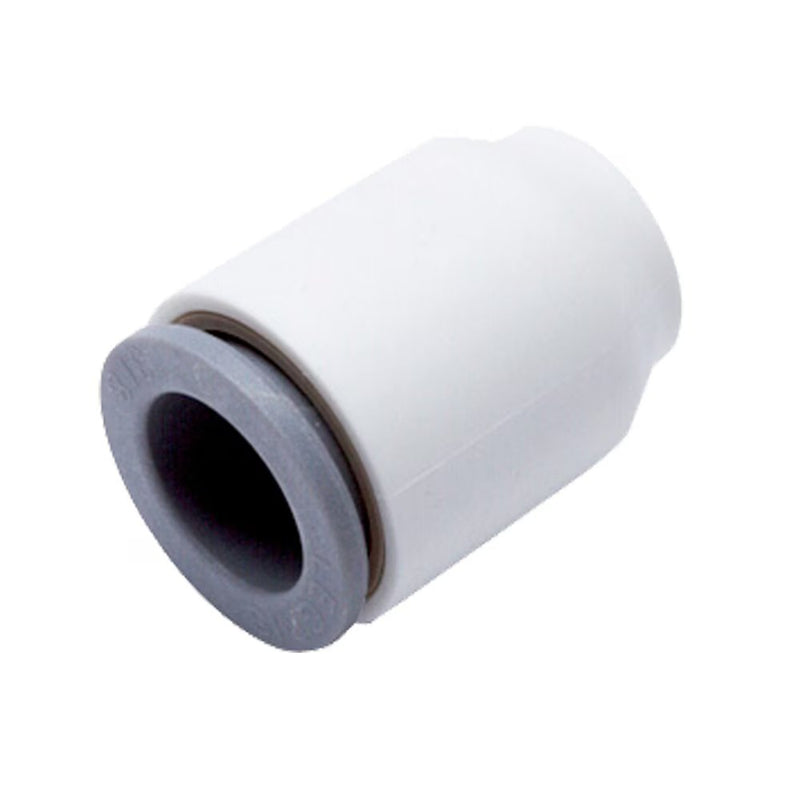

6351 08 00WP2 by Parker | Legris End Cap | 8 mm Cap | 21.5 mm Length | Polymer | Pack of 10

Save $1.65

$25.52

$25.52 - $25.52

$25.52

$23.87

$23.87 - $23.87

$23.87

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6351 End Cap

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6351 08 00WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6351 Series
Shape (Orientation):	No Orientation
Material(s):	Polymer
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	G	H	Kg
6351 04 00WP2	4 mm	8.5 mm	15 mm	.001 Kg
6351 06 00WP2	66 mm	10.5 mm	17 mm	.002 Kg
6351 08 00WP2	8 mm	13.5 mm	21.5 mm	.003 Kg
6351 10 00WP2	10 mm	16 mm	22 mm	.003 Kg
6351 12 00WP2	12 mm	19 mm	27.5 mm	.006 Kg
