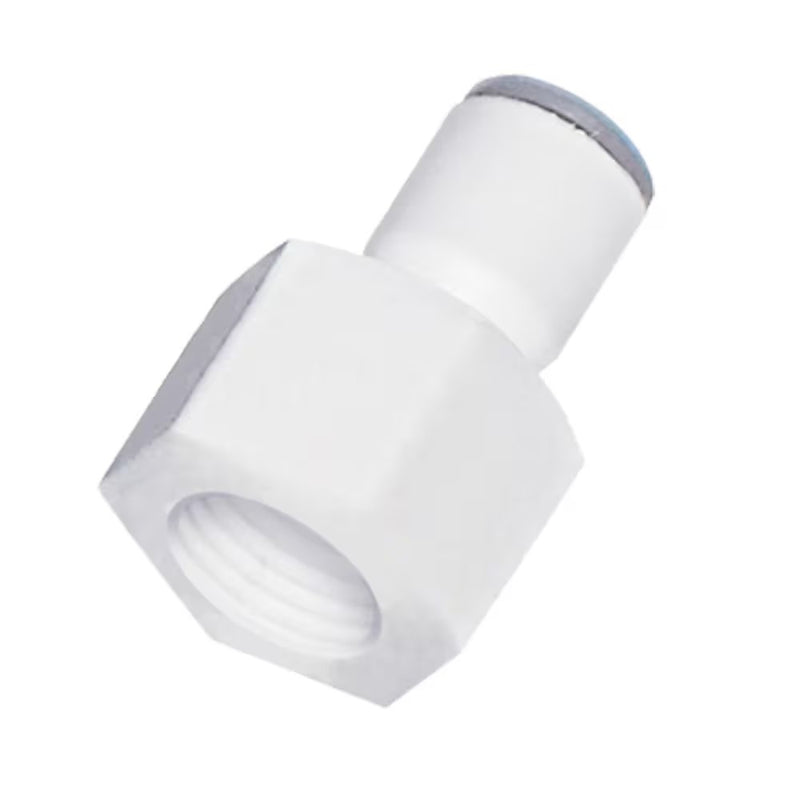

6352 60 17WP2 by Parker | Legris Stud Fitting | 3/8" Tube Size x 3/8" Female BSPP Thread | 36 mm Length | Straight | Polymer | Pack of 10

6352 60 17WP2 by Parker | Legris Stud Fitting | 3/8" Tube Size x 3/8" Female BSPP Thread | 36 mm Length | Straight | Polymer | Pack of 10

Save $25.51 Save $25.51
$63.78
$63.78 - $63.78
$63.78
$38.27
$38.27 - $38.27
$38.27

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6352 Stud Fitting Flat Type, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6352 60 17WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6352 Series
Shape (Orientation): Straight
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C E F H Kg
6352 60 17WP2 3/8" 3/8" 12 mm 22 mm 36 mm .008 Kg
