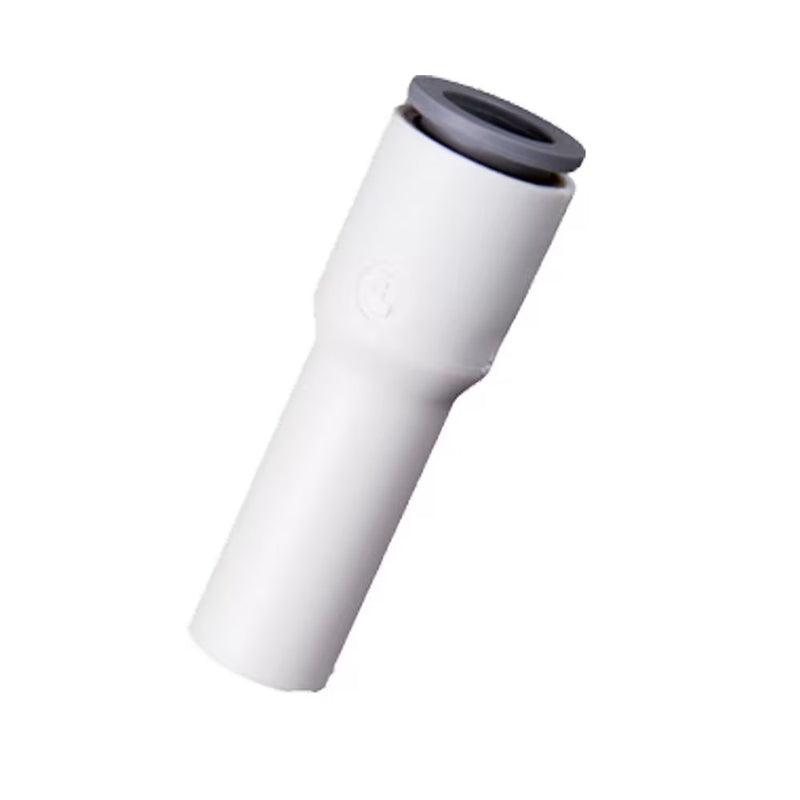

6366 04 08WP2 by Parker | Legris Plug-In Reducer | 4 mm Tube Size x 8 mm Tube Size | 38 mm Length | Straight | Polymer | Pack of 10

Save $12.53

$31.33

$31.33 - $31.33

$31.33

$18.80

$18.80 - $18.80

$18.80

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6366 Plug-In Reducer

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6366 04 08WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6366 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	L	L1	Kg
6366 04 06WP2	4 mm	6 mm	8.5 mm	38 mm	23.5 mm	.004 Kg
6366 04 08WP2	4 mm	8 mm	8.5 mm	38 mm	19 mm	.004 Kg
6366 06 08WP2	6 mm	8 mm	10.5 mm	38 mm	20 mm	.004 Kg
6366 06 10WP2	6 mm	10 mm	10.5 mm	39 mm	17.5 mm	.002 Kg
6366 08 10WP2	8 mm	10 mm	13.5 mm	48.5 mm	28.5 mm	.009 Kg
6366 08 12WP2	8 mm	12 mm	13.5 mm	48.5 mm	24.5 mm	.004 Kg
6366 10 12WP2	10 mm	12 mm	16 mm	52 mm	33.5 mm	.005 Kg
