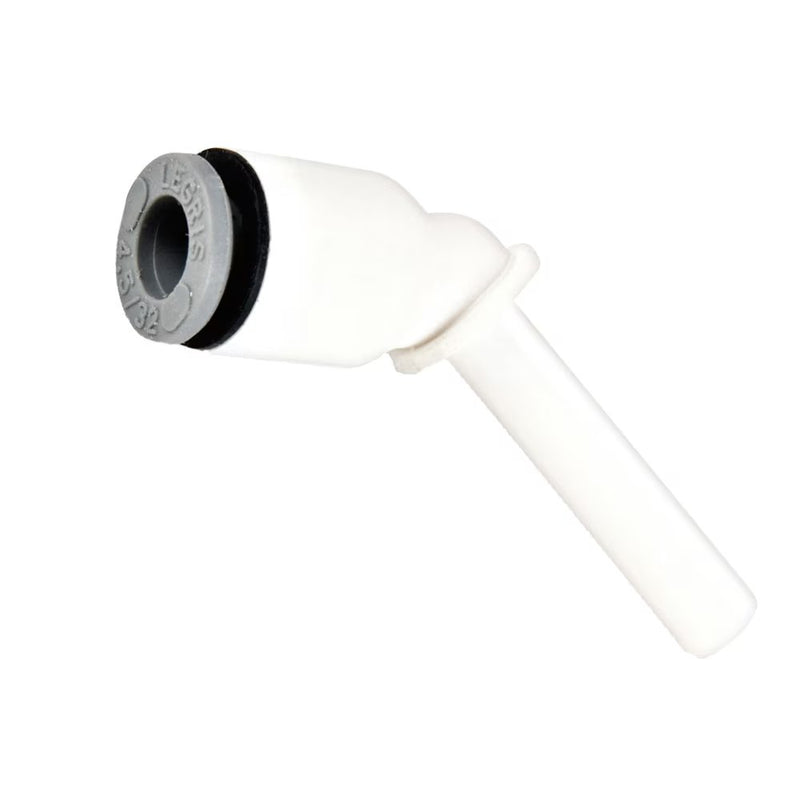

6380 06 00WP2 by Parker | Legris Plug-In Fitting | 6 mm Tube Size x 6 mm Tube Size | 39 mm Length | 45° Elbow | Polymer | Pack of 10

Save $15.38

$38.45

$38.45 - $38.45

$38.45

$23.07

$23.07 - $23.07

$23.07

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6380 Plug-In 45° Equal Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 6380 06 00WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6380 Series
Shape (Orientation):	45° Elbow
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	H	H1	H2	L	Kg
6380 04 00WP2	4 mm	4 mm	8.5 mm	33.5 mm	19 mm	21 mm	13 mm	.001 Kg
6380 06 00WP2	6 mm	6 mm	11 mm	39 mm	21 mm	25 mm	14.5 mm	.002 Kg
6380 08 00WP2	8 mm	8 mm	13.5 mm	44 mm	21.5 mm	25.5 mm	19.5 mm	.006 Kg
6380 10 00WP2	10 mm	10 mm	16 mm	53 mm	27 mm	32.5 mm	23 mm	.004 Kg
6380 12 00WP2	12 mm	12 mm	19 mm	58 mm	27 mm	34 mm	26 mm	.012 Kg
