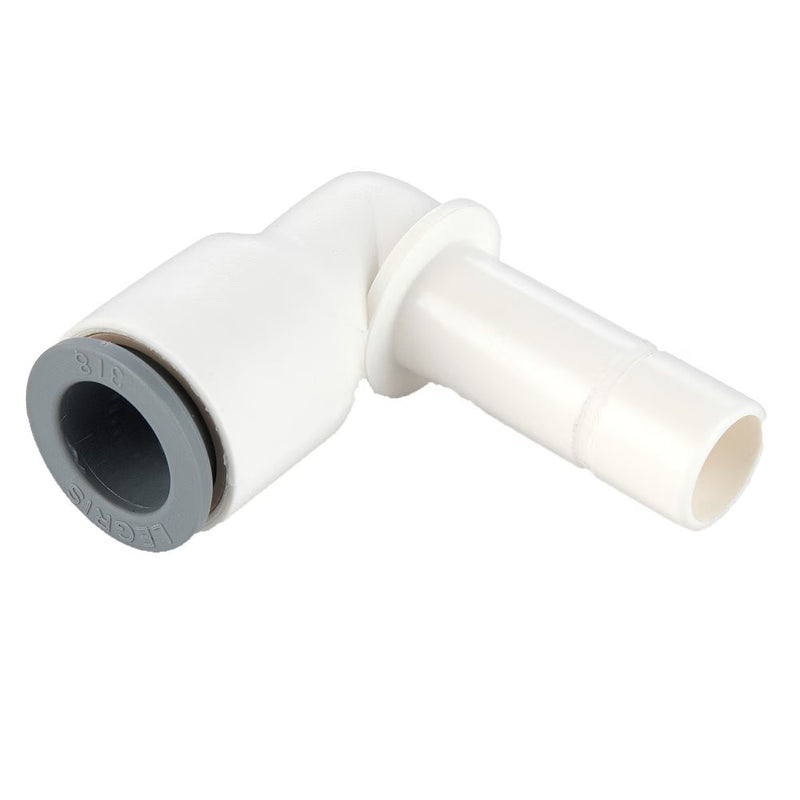

6382 08 10WP2 by Parker | Legris Plug-In Fitting | 8 mm Tube Size x 10 mm Tube Size | 39 mm Length | 90° Elbow | Polymer

Save $3.05

$7.62

$7.62 - $7.62

$7.62

$4.57

$4.57 - $4.57

$4.57

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6382 Equal and Unequal Plug-In Elbow

Specifications for Variant SKU: 6382 08 10WP2 Parker
Brand:	LIQUIfit®
Series:	6382 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	H	H1	H2	L	Kg
6382 04 00WP2	4 mm	4 mm	8.5 mm	23 mm	6 mm	15.5 mm	15 mm	.003 Kg
6382 04 06WP2	4 mm	6 mm	10.5 mm	26.5 mm	7 mm	17 mm	16.5 mm	.002 Kg
6382 06 00WP2	6 mm	6 mm	10.5 mm	26.5 mm	7 mm	17 mm	17 mm	.003 Kg
6382 06 04WP2	6 mm	4 mm	10.5 mm	25 mm	7 mm	15.5 mm	17 mm	.001 Kg
6382 06 08WP2	6 mm	8 mm	13.5 mm	33.5 mm	8 mm	21.5 mm	22 mm	.004 Kg
6382 08 00WP2	8 mm	8 mm	13.5 mm	33.5 mm	8 mm	21.5 mm	22.5 mm	.004 Kg
6382 08 10WP2	8 mm	10 mm	16 mm	39 mm	9.5 mm	24.5 mm	26 mm	.007 Kg
6382 10 00WP2	10 mm	10 mm	16 mm	39 mm	9.5 mm	24.5 mm	26.5 mm	.004 Kg
6382 12 00WP2	12 mm	12 mm	19 mm	44.5 mm	10 mm	27 mm	31 mm	.012 Kg

The references in diameter 4mm and 12mm are not grooved in standard version
