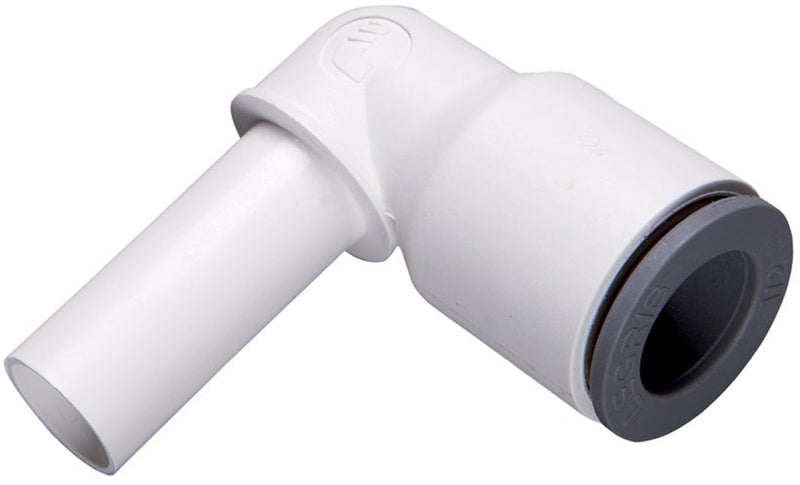

63826000WP2 by Dixon Valve | LIQUIfit™ Fitting | Plug-in 90° Elbow | 3/8" Plug-in x 3/8" Tube OD | Nylon

63826000WP2 by Dixon Valve | LIQUIfit™ Fitting | Plug-in 90° Elbow | 3/8" Plug-in x 3/8" Tube OD | Nylon

Save $3.15 Save $3.15
$7.87
$7.87 - $7.87
$7.87
$4.72
$4.72 - $4.72
$4.72

Dixon Valve
LIQUIfit™ Fitting | Plug-in 90° Elbow

Suitable for water, potable liquids, and neutral gas applications: including water filtration, water coolers, coffee machines, and beverage dispensers.
Specifications for Variant SKU: 63826000WP2 Dixon
Brand: LIQUIfit
Series: 6382 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Tube Stem
Material(s): Nylon
Seal Material(s): EPDM
Features:
  • EPDM seal secures connection with larger surface area than standard O-rings.
  • Engineered polymer allows superior mechanical strength and chemical resistance.
  • Full stainless gripping ring eliminates the need for locking clips.
  • Release button protects and supports tubing.
Material:
  • Nylon
Approvals:
  • FDA compliant
  • Meets California and Vermont <0.25% lead requirements
  • NSF-51 listed for contact with food
  • NSF-61 list C-Hot rated
Specifications:
  • Working Pressure:
  • 1/4"
    • 230 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 150 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • 3/8"
    • 190 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 100 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • 1/2"
    • 160 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 100 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • Maximum torque values for NPTF threads:
    • 1/8" and 1/4" 1.0 ft. lbs. / 1.5Nm
    • 3/8" and 1/2" 2.2 ft. lbs. / 3.0Nm
Part Number Tube O.D. Plug-in
63825600WP2 1/4" 1/4"
63826000WP2 3/8" 3/8"
63826200WP2 1/2" 1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
