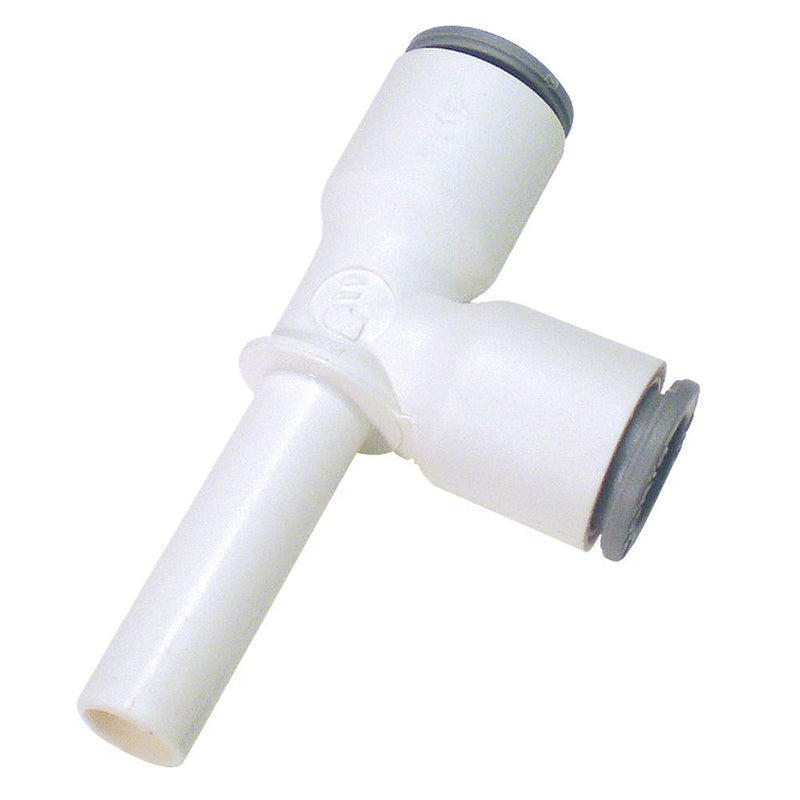

6383 04 00WP2 by Parker | Legris Plug-In Fitting | 4 mm Tube Size x 4 mm Tube Size | 33 mm Length | Tee | Polymer

6383 04 00WP2 by Parker | Legris Plug-In Fitting | 4 mm Tube Size x 4 mm Tube Size | 33 mm Length | Tee | Polymer | Pack of 10

Save $10.10 Save $10.10
$41.57
$41.57 - $41.57
$41.57
$31.47
$31.47 - $31.47
$31.47

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6383 Plug-In Equal Run Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 6383 04 00WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6383 Series
Shape (Orientation): Tee
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H H1 H2 L Kg
6383 04 00WP2 4 mm 4 mm 8.5 mm 33 mm 6 mm 15.5 mm 15 mm .002 Kg
6383 06 00WP2 6 mm 6 mm 10.5 mm 38.5 mm 7 mm 17 mm 18 mm .002 Kg
6383 08 00WP2 8 mm 8 mm 13.5 mm 49 mm 8 mm 21.5 mm 23 mm .005 Kg
6383 10 00WP2 10 mm 10 mm 16 mm 57 mm 10.5 mm 25.5 mm 26.5 mm .012 Kg
