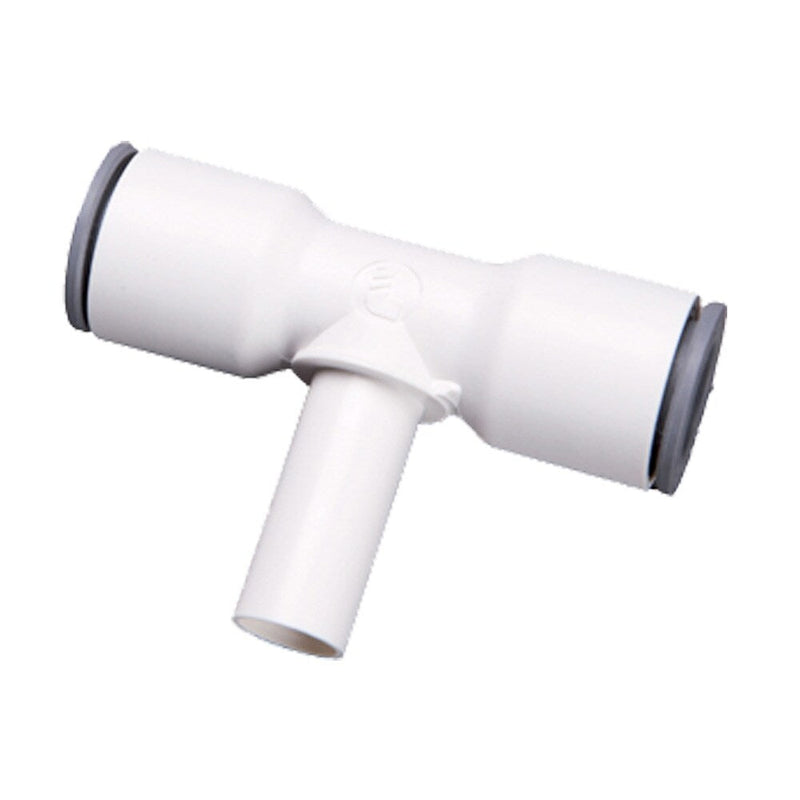

6388 10 00WP2 by Parker | Legris Plug-In Fitting | 10 mm Tube Size x 10 mm Tube Size | 53 mm Length | Tee | Polymer | Pack of 10

Save $32.27

$80.67

$80.67 - $80.67

$80.67

$48.40

$48.40 - $48.40

$48.40

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6388 Plug-In Equal Branch Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 6388 10 00WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6388 Series
Shape (Orientation):	Tee
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	H	H1	H2	L/2	Kg
6388 04 00WP2	4 mm	4 mm	8.5 mm	25 mm	6 mm	15.5 mm	15 mm	.005 Kg
6388 06 00WP2	6 mm	6 mm	10.5 mm	28.5 mm	7 mm	17 mm	16 mm	.006 Kg
6388 08 00WP2	8 mm	8 mm	13.5 mm	33.5 mm	8 mm	21.5 mm	23 mm	.005 Kg
6388 10 00WP2	10 mm	10 mm	16 mm	41 mm	9.5 mm	24.5 mm	26.5 mm	.007 Kg
