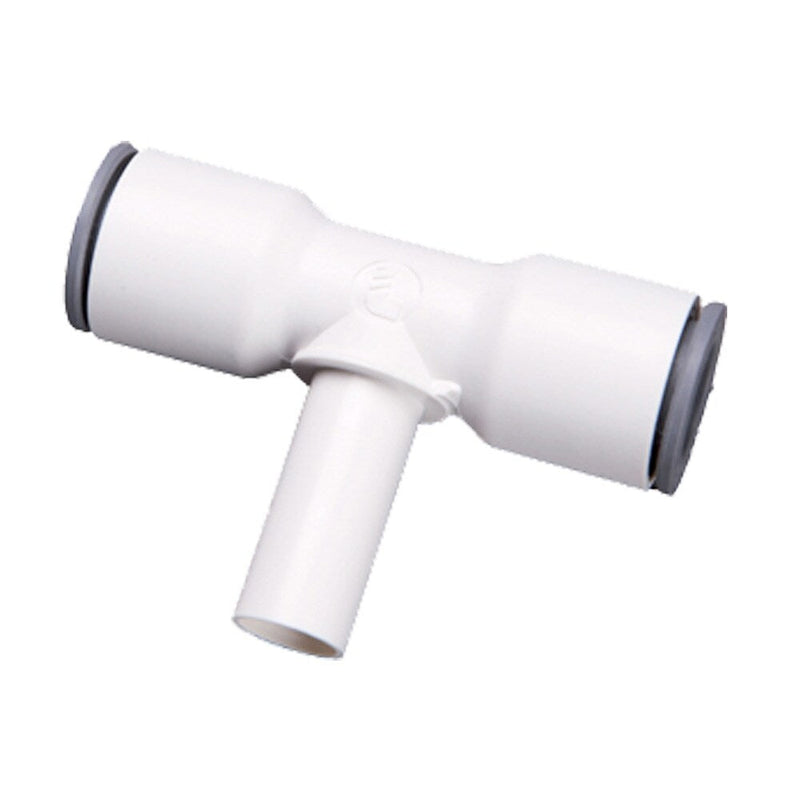

6388 60 00WP2 by Parker | Legris Plug-In Fitting | 3/8" Tube Size x 3/8" Tube Size | 50 mm Length | Tee | Polymer | Pack of 10

Save $2.58

$40.85

$40.85 - $40.85

$40.85

$38.27

$38.27 - $38.27

$38.27

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6388 Plug-In Branch Tee

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6388 60 00WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6388 Series
Shape (Orientation):	Tee
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	H (mm)	H1 (mm)	H2 (mm)	L/2 (mm)	H (in)	H1 (in)	H2 (in)	L/2 (in)	Kg
6388 56 00WP2	1/4"	1/4"	11 mm	30.5 mm	11 mm	20 mm	18 mm	-	-	-	-	.002 Kg
6388 60 00WP2	3/8"	3/4"	16 mm	42 mm	12 mm	25 mm	25 mm	-	-	-	-	.008 Kg
6388 62 00WP2	1/2"	1/2"	-	-	-	-	-	2.01"	.51"	1.14"	1.26"	-

5/32” (4 mm) and 5/16” (8 mm) also available.

For rotary applications, we recommend the use of a special grooved version, available upon request.
