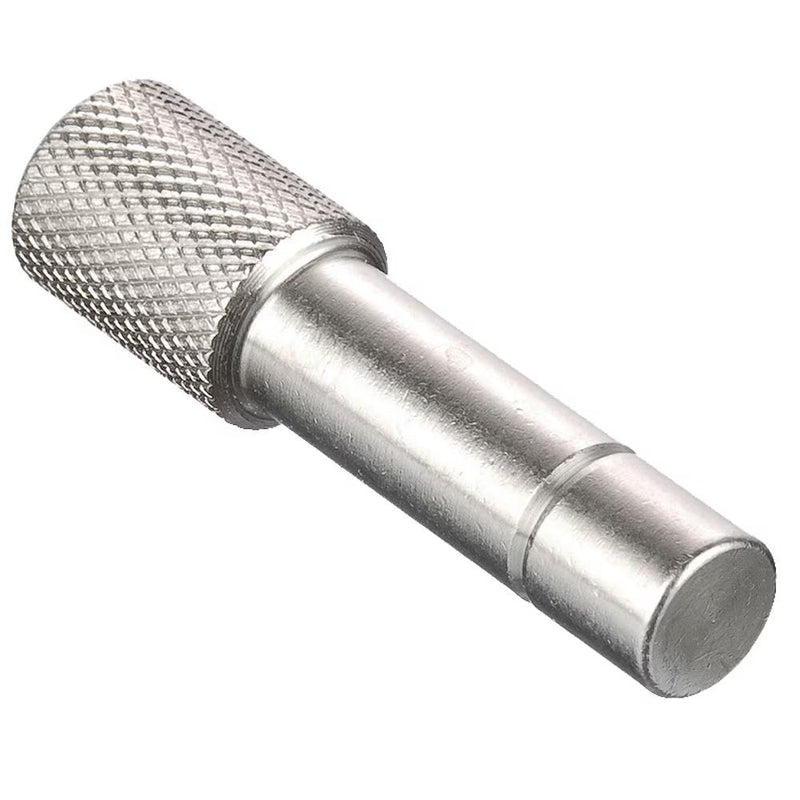

639PLM-10M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Plug | 10 mm Tube Size | 40.00 mm Length | Electroless Nickel-Plated Brass | Pack of 10

639PLM-10M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Plug | 10 mm Tube Size | 40.00 mm Length | Electroless Nickel-Plated Brass | Pack of 10

Save $31.15 Save $31.15
$77.88
$77.88 - $77.88
$77.88
$46.73
$46.73 - $46.73
$46.73

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:639PLM Plug Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 639PLM-10M Parker | 10 |
Series: 639PLM Series
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size L L1 L2
639PLM-4M 4 mm 25.50 mm 17.00 mm 11.50 mm
639PLM-6M 6 mm 30.50 mm 19.50 mm 13.50 mm
639PLM-8M 8 mm 33.00 mm 20.00 mm 16.00 mm
639PLM-10M 10 mm 40.00 mm 25.00 mm 18.00 mm
639PLM-12M 12 mm 43.00 mm 26.00 mm 20.00 mm
639PLM-14M 14 mm 47.00 mm 28.00 mm 22.50 mm
