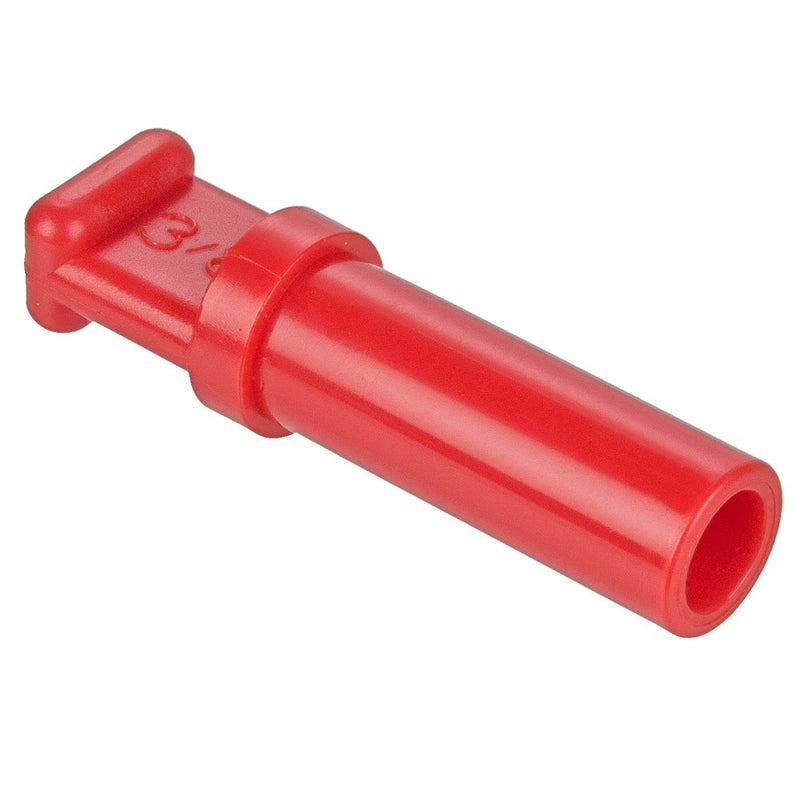

639PLP-3M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 3mm Tube Size | 25mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 50

639PLP-3M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 3mm Tube Size | 25mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 50

Save $22.67 Save $22.67
$56.67
$56.67 - $56.67
$56.67
$34.00
$34.00 - $34.00
$34.00

by Parker Hannifin
Push-to-Connect Fittings:639PLP Plug Metric

Package Quantity: 50 Units

Specifications for Variant SKU: 639PLP-3M Parker | 50 |
Series: 639PLP Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size L
639PLP-3M 3 mm 25 mm
639PLP-4M 4 mm 30 mm
639PLP-6M 6 mm 33 mm
639PLP-8M 8 mm 33 mm
639PLP-10M 10 mm 42 mm
639PLP-12M 12 mm 45 mm
639PLP-14M 14 mm 49 mm
639PLP-16M* 16 mm 57 mm

* Nickel Plated Brass
