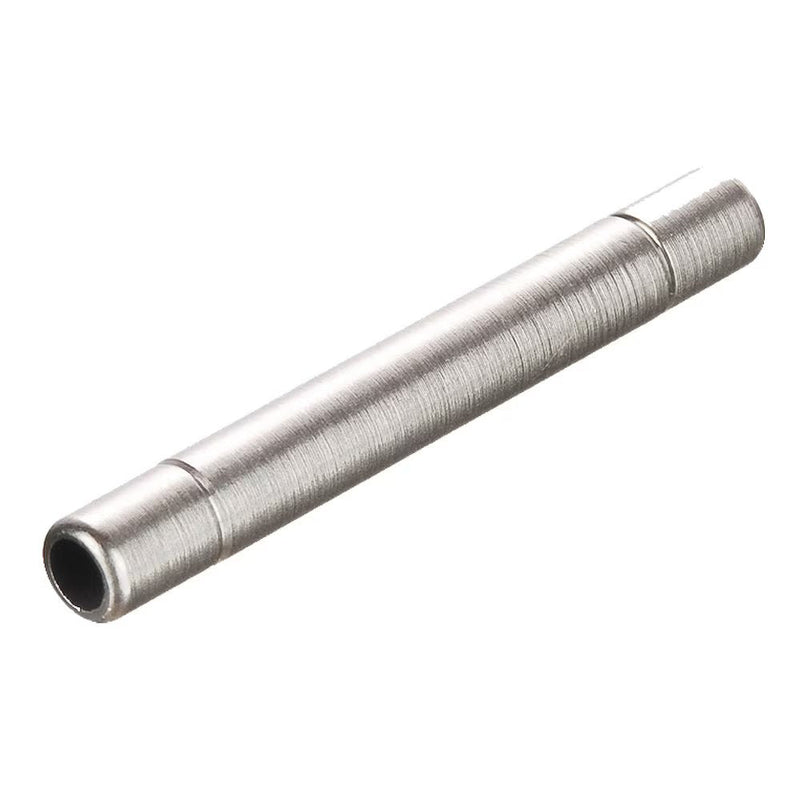

63PLM-4M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Double Male Union | 4 mm Plug-In Union | 31.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

63PLM-4M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Double Male Union | 4mm Plug-In Union | 31.00mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $17.48 Save $17.48
$43.70
$43.70 - $43.70
$43.70
$26.22
$26.22 - $26.22
$26.22

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:63PLM Double Male Union Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 63PLM-4M Parker | 10 |
Series: 63PLM Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size L L1
63PLM-4M 4 mm 31.00 mm 14.00 mm
63PLM-6M 6 mm 36.50 mm 17.00 mm
63PLM-8M 8 mm 37.50 mm 17.50 mm
63PLM-10M 10 mm 47.50 mm 22.50 mm
63PLM-12M 12 mm 49.50 mm 23.50 mm
63PLM-14M 4 mm 31.00 mm 14.00 mm
