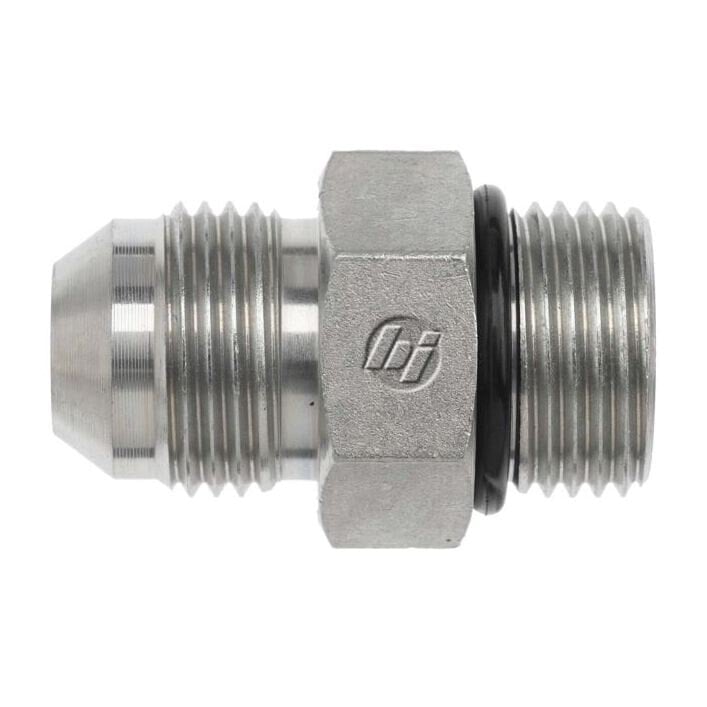

6400-08-20-O by Brennan Inc. | -08 Male JIC x -20 Male O-Ring Boss | Straight | Steel

6400-08-20-O by Brennan Inc. | -08 Male JIC x -20 Male O-Ring Boss | Straight | Steel

Save $2.36 Save $2.36
$21.23
$21.23 - $21.23
$21.23
$18.87
$18.87 - $18.87
$18.87

Brennan Inc.
Tube Fittings & Adapters: 6400 - Male JIC x Male O-Ring Boss | Straight
Specifications for Variant SKU: 6400-08-20-O Brennan
Series: 6400 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 1-1/4in Male O-Ring Boss
Material(s): Steel
Part Number Material Tube O.D B1 SAE37° B2 SAEORB B1 Drill B2 Drill L5 Length C4 Hex
6400-02-02-O Steel 1/8" 5/16-24" 5/16-24" 0.062" 0.062" 1.06" 0.438"
6400-02-06-O Steel 1/8" 5/16-24" 9/16-18" 0.062" 0.297" 1.19" 0.688"
6400-03-02-O Steel 3/16" 3/8-24" 5/16-24" 0.125" 0.062" 1.10" 0.500"
6400-03-03-O Steel 3/16" 3/8-24" 3/8-24" 0.125" 0.125" 1.10" 0.500"
6400-03-04-O Steel 3/16" 3/8-24" 7/16-20" 0.125" 0.172" 1.160" 0.562"
6400-03-05-O Steel - - - - - - -
6400-04-02-O Steel 1/4" 7/16-20" 5/16-24" 0.172" 0.062" 1.170" 0.500"
6400-04-03-O Steel 1/4" 7/16-20" 3/8-24" 0.172" 0.125" 1.170" 0.500"
6400-04-04-O Steel 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 1.23" 0.562"
6400-04-04-O-BLANK Steel - - - - - - -
6400-04-05-O Steel 1/4" 7/16-20" 1/2-20" 0.172" 0.234" 1.230" 0.625"
6400-04-06-O Steel 1/4" 7/16-20" 9/16-18" 0.172" 0.297" 1.290" 0.688"
6400-04-06-O-BLANK Steel - - - - - - -
6400-04-08-O Steel 1/4" 7/16-20" 3/4-16" 0.172" 0.391" 1.370" 0.875"
6400-04-10-O Steel 1/4" 7/16-20" 7/8-14" 0.172" 0.484" 1.490" 1.000"
6400-04-12-O Steel 1/4" 7/16-20" 1-1/16-12" 0.172" 0.609" 1.660" 1.250"
6400-05-04-O Steel 5/16" 1/2-20" 7/16-20" 0.234" 0.172" 1.230" 0.562"
6400-05-05-O Steel 5/16" 1/2-20" 1/2-20" 0.234" 0.234" 1.230" 0.625"
6400-05-06-O Steel 5/16" 1/2-20" 9/16-18" 0.234" 0.297" 1.290" 0.688"
6400-05-08-O Steel 5/16" 1/2-20" 3/4-16" 0.234" 0.391" 1.370" 0.875"
6400-05-10-O Steel 5/16" 1/2-20" 7/8-14" 0.234" 0.484" 1.49" 1.000"
6400-06-03-O Steel 3/8" 9/16-18" 3/8-24" 0.297" 0.125" 1.212" 0.625"
6400-06-04-O Steel 3/8" 9/16-18" 7/16-20" 0.297" 0.172" 1.270" 0.625"
6400-06-05-O Steel 3/8" 9/16-18" 1/2-20" 0.297" 0.234" 1.270" 0.625"
6400-06-06-O Steel 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 1.30" 0.688"
6400-06-06-O-BLANK Steel - - - - - - -
6400-06-08-O Steel 3/8" 9/16-18" 3/4-16" 0.297" 0.391" 1.380" 0.875"
6400-06-10-O Steel 3/8" 9/16-18" 7/8-14" 0.297" 0.484" 1.50" 1.000"
6400-06-12-O Steel 3/8" 9/16-18" 1-1/16-12" 0.297" 0.609" 1.66" 1.250"
6400-06-16-O Steel 3/8" 9/16-18" 1-5/16-12" 0.297" 0.844" 1.690" 1.500"
6400-08-04-O Steel 1/2" 3/4-16" 7/16-20" 0.391" 0.172" 1.49" 0.875"
6400-08-05-O Steel 1/2" 3/4-16" 1/2-20" 0.391" 0.234" 1.49" 0.875"
6400-08-06-O Steel 1/2" 3/4-16" 9/16-18" 0.391" 0.297" 1.44" 0.812"
6400-08-08-O Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.48" 0.875"
6400-08-08-O-BLANK Steel - - - - - - -
6400-08-10-O Steel 1/2" 3/4-16" 7/8-14" 0.391" 0.484" 1.600" 1.000"
6400-08-12-O Steel 1/2" 3/4-16" 1-1/16-12" 0.391" 0.609" 1.760" 1.250"
6400-08-14-O Steel 1/2" 3/4-16" 1-3/16-12" 0.391" 0.719" 1.76" 1.375"
6400-08-16-O Steel 1/2" 3/4-16" 1-5/16-12" 0.391" 0.844" 1.79" 1.500"
6400-08-20-O Steel 1/2" 3/4-16" 1-5/8-12" 0.391" 1.078" 1.87" 1.875"
6400-10-04-O Steel 5/8" 7/8-14" 7/16-20" 0.484" 0.172" 1.65" 0.937"
6400-10-06-O Steel 5/8" 7/8-14" 9/16-18" 0.484" 0.297" 1.71" 1.000"
6400-10-08-O Steel 5/8" 7/8-14" 3/4-16" 0.391" 0.391" 1.640" 1.000"
6400-10-10-O Steel 5/8" 7/8-14" 7/8-14" 0.484" 0.484" 1.70" 1.000"
6400-10-12-O Steel 5/8" 7/8-14" 1-1/16-12" 0.484" 0.609" 1.86" 1.250"
6400-10-14-O Steel 5/8" 7/8-14" 1-3/16-12" 0.484" 0.719" 1.860" 1.375"
6400-10-16-O Steel 5/8" 7/8-14" 1-5/16-12" 0.484" 0.844" 1.89" 1.500"
6400-10-20-O Steel 5/8" 7/8-14" 1-5/8-12" 0.484" 1.078" 1.97" 1.875"
6400-12-06-O Steel 3/4" 1-1/16-12" 9/16-18" 0.609" 0.297" 1.860" 1.125"
6400-12-08-O Steel 3/4" 1-1/16-12" 3/4-16" 0.609" 0.391" 1.94" 1.125"
6400-12-10-O Steel 3/4" 1-1/16-12" 7/8-14" 0.609" 0.484" 1.88" 1.125"
6400-12-12-O Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.97" 1.250"
6400-12-14-O Steel 3/4" 1-1/16-12" 1-3/16-12" 0.609" 0.719" 1.96" 1.375"
6400-12-16-O Steel 3/4" 1-1/16-12" 1-5/16-12" 0.609" 0.844" 1.99" 1.500"
6400-12-20-O Steel 3/4" 1-1/16-12" 1-5/8-12" 0.609" 1.078" 2.080" 1.875"
6400-12-24-O Steel 7/8" 1-1/16-12" 1-7/8-12" 0.609" 1.312" 2.150" 2.125"
6400-14-08-O Steel 7/8" 1-3/16-12" 3/4-16" 0.719" 0.391" 1.960" 1.250"
6400-14-12-O Steel 7/8" 1-3/16-12" 1-1/16-12" 0.719" 0.609" 1.99" 1.250"
6400-14-14-O Steel 7/8" 1-3/16-12" 1-3/16-12" 0.719" 0.719" 1.99" 1.375"
6400-14-16-O Steel 7/8" 1-3/16-12" 1-5/16-12" 0.719" 0.844" 2.020" 1.500"
6400-16-06-O Steel 1" 1-5/16-12" 9/16-18" 0.844" 0.297" 1.93" 1.375"
6400-16-08-O Steel 1" 1-5/16-12" 3/4-16" 0.844" 0.391" 2.010" 1.375"
6400-16-10-O Steel 1" 1-5/16-12" 7/8-14" 0.844" 0.484" 2.07" 1.375"
6400-16-12-O Steel 1" 1-5/16-12" 1-1/16-12" 0.844" 0.609" 2.04" 1.375"
6400-16-14-O Steel 1" 1-5/16-12" 1-3/16-12" 0.844" 0.719" 2.040" 1.375"
6400-16-16-O Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 2.040" 1.500"
6400-16-20-O Steel 1" 1-5/16-12" 1-5/8-12" 0.844" 1.078" 2.12" 1.875"
6400-16-24-O Steel 1" 1-5/16-12" 1-7/8-12" 0.844" 1.312" 2.200" 2.125"
6400-20-12-O Steel 1-1/4" 1-5/8-12" 1-1/16-12" 1.078" 0.609" 2.300" 1.688"
6400-20-16-O Steel 1-1/4" 1-5/8-12" 1-5/16-12" 1.078" 0.844" 2.33" 1.688"
6400-20-20-O Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 2.17" 1.875"
6400-20-24-O Steel 1-1/4" 1-5/8-12" 1-7/8-12" 1.078" 1.312" 2.24" 2.125"
6400-20-32-O Steel 1-1/4" 1-5/8-12" 2-1/2-12" 1.078" 1.781" 2.400" 2.750"
6400-24-16-O Steel 1-1/2" 1-7/8-12" 1-5/16-12" 1.312" 0.844" 2.530" 2.125"
6400-24-20-O Steel 1-1/2" 1-7/8-12" 1-5/8-12" 1.312" 1.078" 2.530" 2.125"
6400-24-24-O Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.312" 1.312" 2.37" 2.125"
6400-24-32-O Steel 1-1/2" 1-7/8-12" 2-1/2-12" 1.312" 1.781" 2.530" 2.750"
6400-32-20-O Steel 2" 2-1/2-12" 1-5/8-12" 1.781" 1.078" 2.940" 2.625"
6400-32-24-O Steel 2" 2-1/2-12" 1-7/8-12" 1.781" 1.312" 2.940" 2.625"
6400-32-32-O Steel 2" 2-1/2-12" 2-1/2-12" 1.781" 1.781" 2.780" 2.750"

6400-04-04-O-B Brass 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 1.23" 0.562"
6400-08-08-O-B Brass 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.48" 0.875"
6400-12-12-O-B Brass 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.97" 1.250"

6400-02-02-O-SS Stainless Steel 1/8" 5/16-24" 5/16-24" 0.062" 0.062" 1.06" 0.438"
6400-03-02-O-SS Stainless Steel 3/16" 3/8-24" 5/16-24" 0.125" 0.062" 1.10" 0.500"
6400-03-03-O-SS Stainless Steel 3/16" 3/8-24" 3/8-24" 0.125" 0.125" 1.10" 0.500"
6400-04-02-O-SS Stainless Steel 1/4" 7/16-20" 5/16-24" 0.172" 0.062" 1.170" 0.500"
6400-04-03-O-SS Stainless Steel 1/4" 7/16-20" 3/8-24" 0.172" 0.125" 1.170" 0.500"
6400-04-04-O-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 1.23" 0.562"
6400-04-05-O-SS Stainless Steel 1/4" 7/16-20" 1/2-20" 0.172" 0.234" 1.230" 0.625"
6400-04-06-O-SS Stainless Steel 1/4" 7/16-20" 9/16-18" 0.172" 0.297" 1.290" 0.688"
6400-04-08-O-SS Stainless Steel 1/4" 7/16-20" 3/4-16" 0.172" 0.391" 1.370" 0.875"
6400-05-04-O-SS Stainless Steel 5/16" 1/2-20" 7/16-20" 0.234" 0.172" 1.230" 0.562"
6400-05-05-O-SS Stainless Steel 5/16" 1/2-20" 1/2-20" 0.234" 0.234" 1.230" 0.625"
6400-06-04-O-SS Stainless Steel 3/8" 9/16-18" 7/16-20" 0.297" 0.172" 1.270" 0.687"
6400-06-05-O-SS Stainless Steel 3/8" 9/16-18" 1/2-20" 0.297" 0.234" 1.270" 0.625"
6400-06-06-O-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 1.30" 0.688"
6400-06-08-O-SS Stainless Steel 3/8" 9/16-18" 3/4-16" 0.297" 0.391" 1.380" 0.875"
6400-06-10-O-SS Stainless Steel 3/8" 9/16-18" 7/8-14" 0.297" 0.484" 1.50" 1.000"
6400-06-12-O-SS Stainless Steel 3/8" 9/16-18" 1-1/16-12" 0.297" 0.609" 1.66" 1.250"
6400-06-16-O-SS Stainless Steel 3/8" 9/16-18" 1-5/16-12" 0.297" 0.844" 1.690" 1.500"
6400-08-04-O-SS Stainless Steel 1/2" 3/4-16" 7/16-20" 0.391" 0.172" 1.49" 0.875"
6400-08-06-O-SS Stainless Steel 1/2" 3/4-16" 9/16-18" 0.391" 0.297" 1.44" 0.812"
6400-08-08-O-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.48" 0.875"
6400-08-10-O-SS Stainless Steel 1/2" 3/4-16" 7/8-14" 0.391" 0.484" 1.600" 1.000"
6400-08-12-O-SS Stainless Steel 1/2" 3/4-16" 1-1/16-12" 0.391" 0.391" 1.760" 1.250"
6400-08-16-O-SS Stainless Steel 1/2" 3/4-16" 1-5/16-12" 0.391" 0.844" 1.79" 1.500"
6400-10-06-O-SS Stainless Steel 5/8" 7/8-14" 9/16-18" 0.484" 0.297" 1.71" 1.000"
6400-10-08-O-SS Stainless Steel 5/8" 7/8-14" 3/4-16" 0.391" 0.391" 1.640" 1.000"
6400-10-10-O-SS Stainless Steel 5/8" 7/8-14" 7/8-14" 0.484" 0.484" 1.70" 1.000"
6400-10-12-O-SS Stainless Steel 5/8" 7/8-14" 1-1/16-12" 0.484" 0.609" 1.86" 1.250"
6400-10-16-O-SS Stainless Steel 5/8" 7/8-14" 1-5/16-12" 0.484" 0.844" 1.89" 1.500"
6400-12-06-O-SS Stainless Steel 3/4" 1-1/16-12" 9/16-18" 0.609" 0.297" 1.860" 1.125"
6400-12-08-O-SS Stainless Steel 3/4" 1-1/16-12" 3/4-16" 0.609" 0.391" 1.94" 1.125"
6400-12-10-O-SS Stainless Steel 3/4" 1-1/16-12" 7/8-14" 0.609" 0.484" 1.88" 1.125"
6400-12-12-O-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.97" 1.250"
6400-12-16-O-SS Stainless Steel 3/4" 1-1/16-12" 1-5/16-12" 0.609" 0.844" 1.99" 1.500"
6400-12-20-O-SS Stainless Steel 3/4" 1-1/16-12" 1-5/8-12" 0.609" 1.078" 2.080" 1.875"
6400-16-06-O-SS Stainless Steel 1" 1-5/16-12" 9/16-18" 0.844" 0.297" 1.93" 1.375"
6400-16-08-O-SS Stainless Steel 1" 1-5/16-12" 3/4-16" 0.844" 0.391" 2.010" 1.375"
6400-16-10-O-SS Stainless Steel 1" 1-5/16-12" 7/8-14" 0.844" 0.484" 2.07" 1.375"
6400-16-12-O-SS Stainless Steel 1" 1-5/16-12" 1-1/16-12" 0.844" 0.609" 2.04" 1.375"
6400-16-16-O-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 2.040" 1.500"
6400-16-20-O-SS Stainless Steel 1" 1-5/16-12" 1-5/8-12" 0.844" 1.078" 2.12" 1.875"
6400-16-24-O-SS Stainless Steel 1" 1-5/16-12" 1-7/8-12" 0.844" 1.312" 2.200" 2.125"
6400-20-12-O-SS Stainless Steel 1-1/4" 1-5/8-12" 1-1/16-12" 1.078" 0.609" 2.300" 1.688"
6400-20-16-O-SS Stainless Steel 1-1/4" 1-5/8-12" 1-5/16-12" 1.078" 0.844" 2.33" 1.688"
6400-20-20-O-SS Stainless Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 2.17" 1.875"
6400-20-24-O-SS Stainless Steel 1-1/4" 1-5/8-12" 1-7/8-12" 1.078" 1.312" 2.24" 2.125"
6400-24-20-O-SS Stainless Steel 1-1/2" 1-7/8-12" 1-5/8-12" 1.312" 1.078" 2.530" 2.125"
6400-24-24-O-SS Stainless Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.312" 1.312" 2.37" 2.125"
6400-32-24-O-SS Stainless Steel 2" 2-1/2-12" 1-7/8-12" 1.781" 1.312" 2.940" 2.625"
6400-32-32-O-SS Stainless Steel 2" 2-1/2-12" 2-1/2-12" 1.781" 1.781" 2.780" 2.750"
