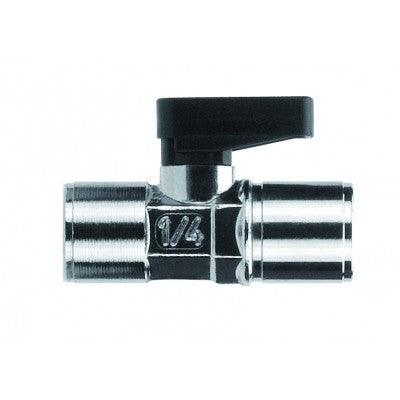

6400-1/4"-1/4" AIGNEP | Ball Valves Series | Ball Valve | 1/4" Female BSPP

6400-1/4"-1/4 by AIGNEP | Ball Valves Series | Ball Valve | 1/4" Female BSPP

Name: 6400-1/4"-1/4 by AIGNEP | Ball Valves Series | Ball Valve | 1/4" Female BSPP
Brand: AIGNEP
SKU: 6400-1/4-1/4 AIGNEP
Price: 5.85 USD
Availability: InStock

Save $3.90

$9.75

$9.75 - $9.75

$9.75

$5.85

$5.85 - $5.85

$5.85

Specifications for Variant SKU: 6400-1/4-1/4 AIGNEP
Series:	Ball Valves Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female BSPP, 1/4in Female BSPP, Some Ends Match
Material(s):	Chrome Plated Brass

Female x Female

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, gas (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: BSPP

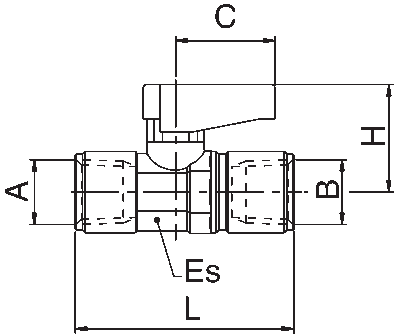

Product Number	Color Plate	Thread Type	F	M	L	Es	A/B	C	F	H
6400-1/8-1/8	Composite	BSPP	0.275"	7 mm	35 mm	14-15 mm	1/8"	19 mm	7 mm	21 mm
6400-1/4-1/4	Composite	BSPP	0.314"	8 mm	37 mm	14-15 mm	1/4"	19 mm	8 mm	21 mm
6400-1/2-1/2	Composite	BSPP	0.393"	10 mm	49 mm	22-23 mm	1/2"	26 mm	10 mm	30.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
