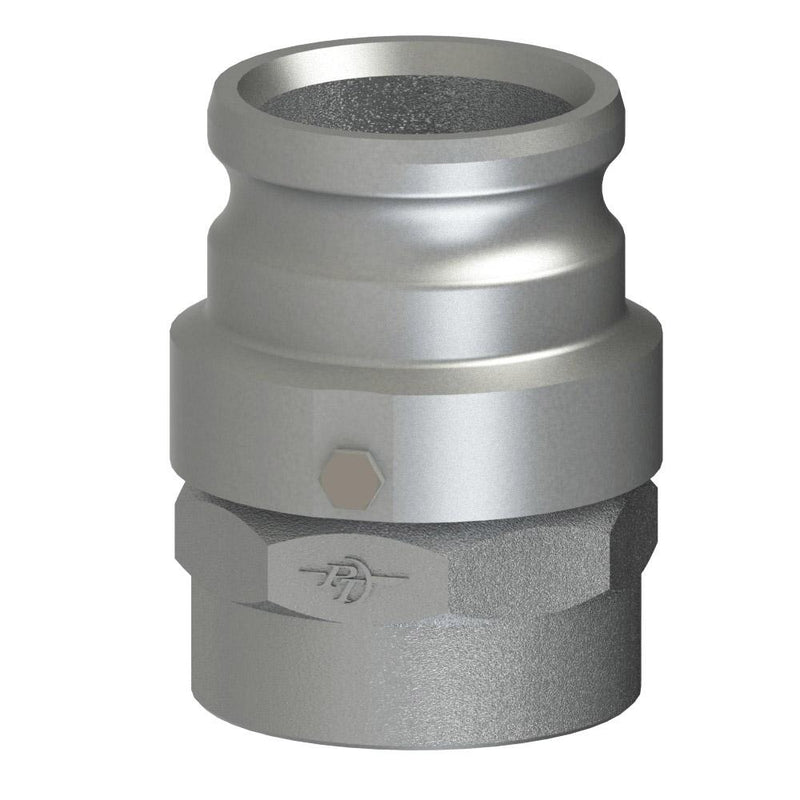

64153000 (30ASV) by PT-Coupling | Swivel Cam & Groove Adapter | Type ASV | 3" Swivel Adapter x 3" Female NPT | 316 Stainless Steel | Viton Seal

Save $223.86

$559.65

$559.65 - $559.65

$559.65

$335.79

$335.79 - $335.79

$335.79

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type ASV | Swivel Adapter x Female NPT | 316 Stainless Steel | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 64153000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	3in Male Cam & Groove, 3in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Available with U-cup Viton® or Buna Seals Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA.


Part Name	316 Stainless Steel Viton® Item #	316 Stainless Steel Buna Item #	Adapter Size	Female NPT Thread Size	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
15ASV	64151500	-	1-1/2"	1-1/2"	2.29"	1.35"	2.44"	0.33"	250 PSI
20ASV	64152000	64152100	2"	2"	2.54"	1.72"	2.92"	0.31"	250 PSI
30ASV	64153000	-	3"	3"	2.84"	2.80"	4.22"	0.44"	200 PSI
40ASV	64154000	-	4"	4"	3.16"	3.78"	5.41"	0.39"	150 PSI
60ASV	64156000	-	6"	6"	3.35"	5.90"	7.70"	0.60"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
