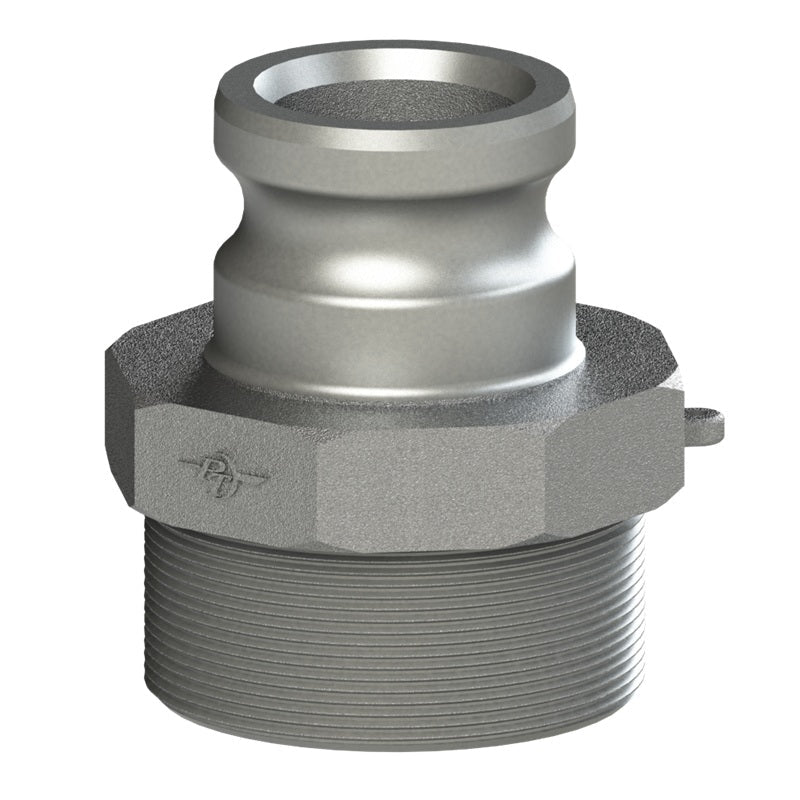

64163020 (30X20F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 3" Adapter x 2" Male NPT | 316 Stainless Steel

64163020 (30X20F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 3" Adapter x 2" Male NPT | 316 Stainless Steel

Save $88.61 Save $88.61
$238.72
$238.72 - $238.72
$238.72
$150.11
$150.11 - $150.11
$150.11

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64163020 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 2in Male NPT
Material(s): 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Male NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10X07F 64341007 1" 3/4" 250 PSI
10X20F 64161020 1" 2" 250 PSI
15X10F 64161510 1-1/2" 1" 250 PSI
15X12F 64161512 1-1/2" 1-1/4" 250 PSI
15X20F 64161520 1-1/2" 2" 250 PSI
20X10F 64162010** 2" 1" 250 PSI
20X15F 64162015 2" 1-1/2" 250 PSI
20X30F 64162030 2" 3" 200 PSI
30X15F 64163015 3" 1-1/2" 200 PSI
30X20F 64163020 3" 2" 200 PSI
30X40F 64163040 3" 4" 150 PSI
40X30F 64164030 4" 3" 150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
