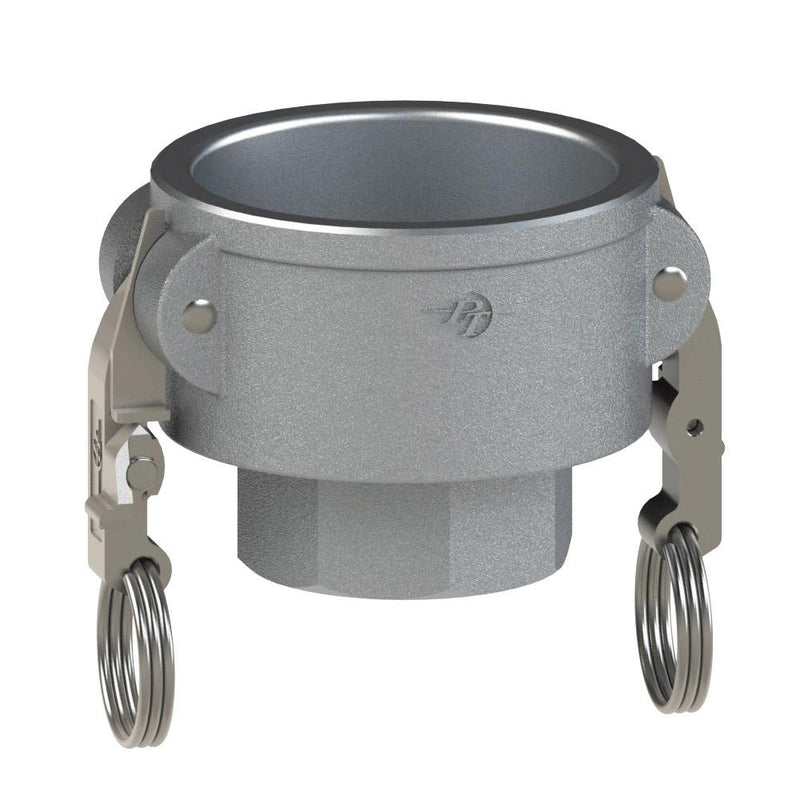

64203020L2 (30X20D SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type D | 3" Coupler x 2" Female NPT | 316 Stainless Steel | Buna-N Seal

64203020L2 (30X20D SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type D | 3" Coupler x 2" Female NPT | 316 Stainless Steel | Buna-N Seal

Save $39.48 Save $39.48
$355.33
$355.33 - $355.33
$355.33
$315.85
$315.85 - $315.85
$315.85

PT Coupling
STA-LOK® II Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64203020L2 PT-Coupling
Series: STA-LOK II
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3in Female Cam & Groove, 2in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
15X10D SLII 64201510L2 1-1/2" 1" 250 PSI
20X15D SLII 64202015L2 2" 1-1/2" 250 PSI
25X20D SLII 6420251L2 2-1/2" 2" 200 PSI
30X20D SLII 64203020L2 3" 2" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
