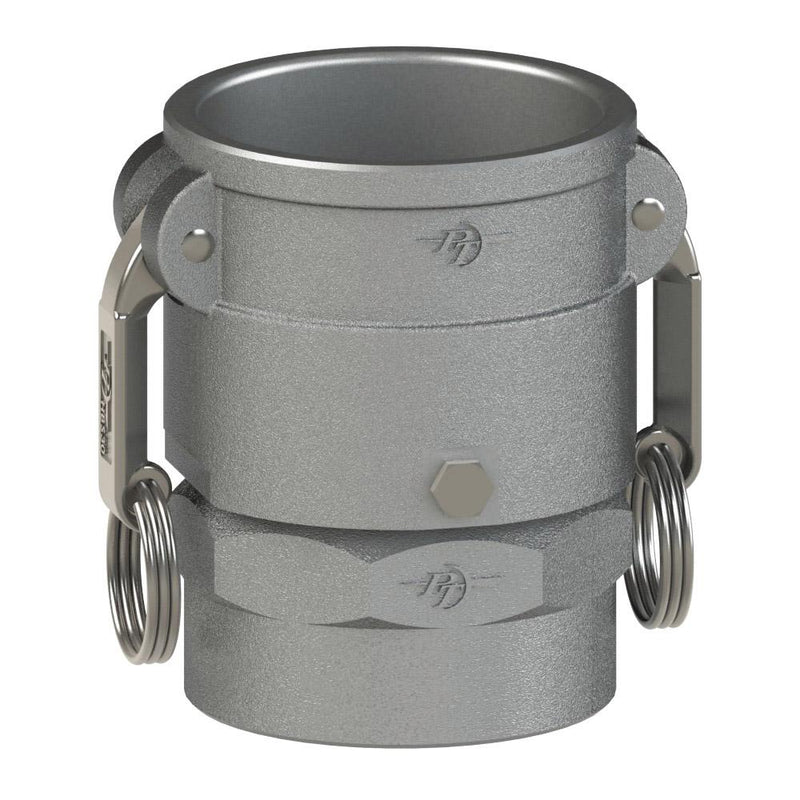

64214000 (40DSV) by PT-Coupling | Swivel Cam & Groove Adapter | Type DSV | 4" Swivel Coupler x 4" Female NPT | 316 Stainless Steel | Viton Seal

Save $407.02

$1,096.47

$1,096.47 - $1,096.47

$1,096.47

$689.45

$689.45 - $689.45

$689.45

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type DSV | Swivel Coupler x Female NPT | 316 Stainless Steel | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64214000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	4in Female Cam & Groove, 4in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA.


Part Name	316 Stainless Steel Viton® Item #	Coupler Size	Female NPT Thread Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
15DSV	64211500	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
20DSV	64212000	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
25DSV	64212500	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30DSV	64213000	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40DSV	64214000	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI
50DSV	64215000	5"	5"	11.67"	7.57"	4.1"	4.5"	75 PSI
60DSV	64216000	6"	6"	16.26"	10.16"	4.40"	5.50"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
