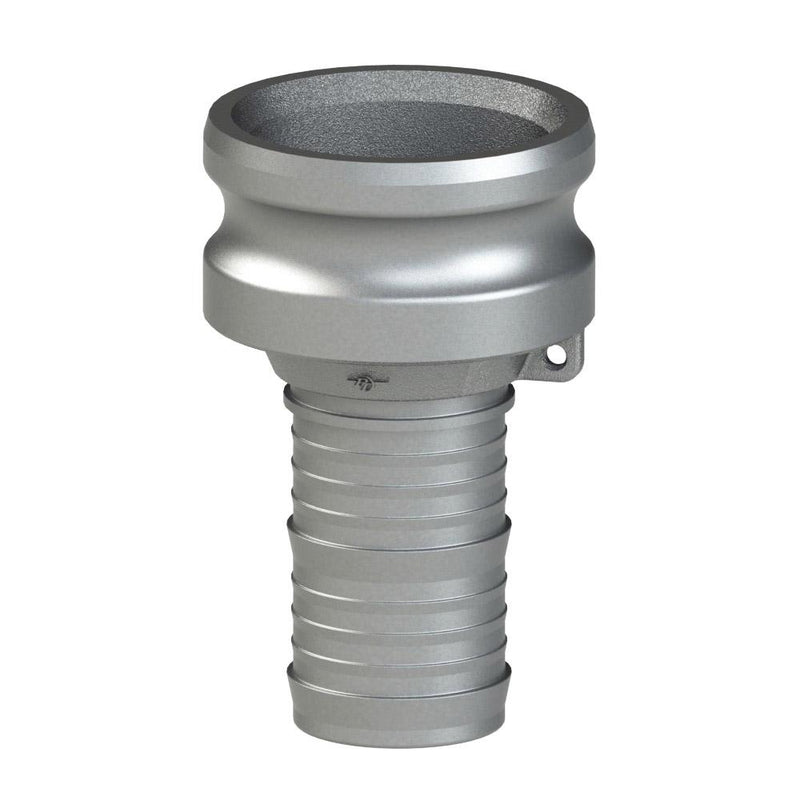

64243025 (30X25E) by PT-Coupling | Reducing Cam & Groove Fitting | Type E | 3" Adapter x 2-1/2" Hose Shank | 316 Stainless Steel

Name: 64243025 (30X25E) by PT-Coupling | Reducing Cam & Groove Fitting | Type E | 3" Adapter x 2-1/2" Hose Shank | 316 Stainless Steel
Brand: PT-Coupling
SKU: 64243025 PT-Coupling
Price: 99.68 USD
Availability: InStock

Save $12.46

$112.14

$112.14 - $112.14

$112.14

$99.68

$99.68 - $99.68

$99.68

PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 64243025 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	3in Male Cam & Groove, 2-1/2in Hose Barb
Material(s):	316 Stainless Steel

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Adapter Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
20X15E	64242015**	2"	1-1/2"	250 PSI
30X20E	64243020	3"	2"	200 PSI
30X25E	64243025	3"	2-1/2"	200 PSI
40X30E	64244030	4"	3"	150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
