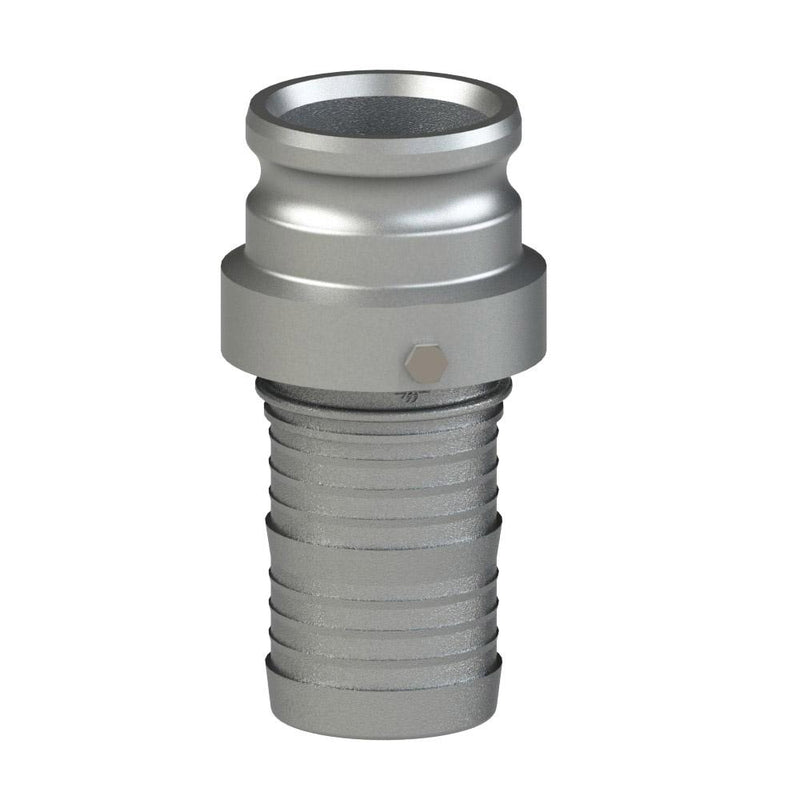

64251500 (15ESV) by PT-Coupling | Swivel Cam & Groove Fitting | Type ESV | 1-1/2" Swivel Adapter x 1-1/2" Hose Shank | 316 Stainless Steel | Viton Seal

Name: 64251500 (15ESV) by PT-Coupling | Swivel Cam & Groove Fitting | Type ESV | 1-1/2" Swivel Adapter x 1-1/2" Hose Shank | 316 Stainless Steel | Viton Seal
Brand: PT-Coupling
SKU: 64251500 PT-Coupling
Price: 236.31 USD
Availability: InStock

Save $139.49

$375.80

$375.80 - $375.80

$375.80

$236.31

$236.31 - $236.31

$236.31

PT Coupling
Swivel Cam & Groove (Camlock) Fitting | Type ESV | Swivel Adapter x Hose Shank | 316 Stainless Steel | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64251500 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	1-1/2in Male Cam & Groove, 1-1/2in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA.


Part Name	316 Stainless Steel Viton® Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Max. Allowable Working Press. (PSI)*
15ESV	64251500	1-1/2"	1-1/2"	2.14"	5.10"	250 PSI
20ESV	64252000	2"	2"	2.64"	5.75"	250 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.

Shop Parts by PT-Coupling
