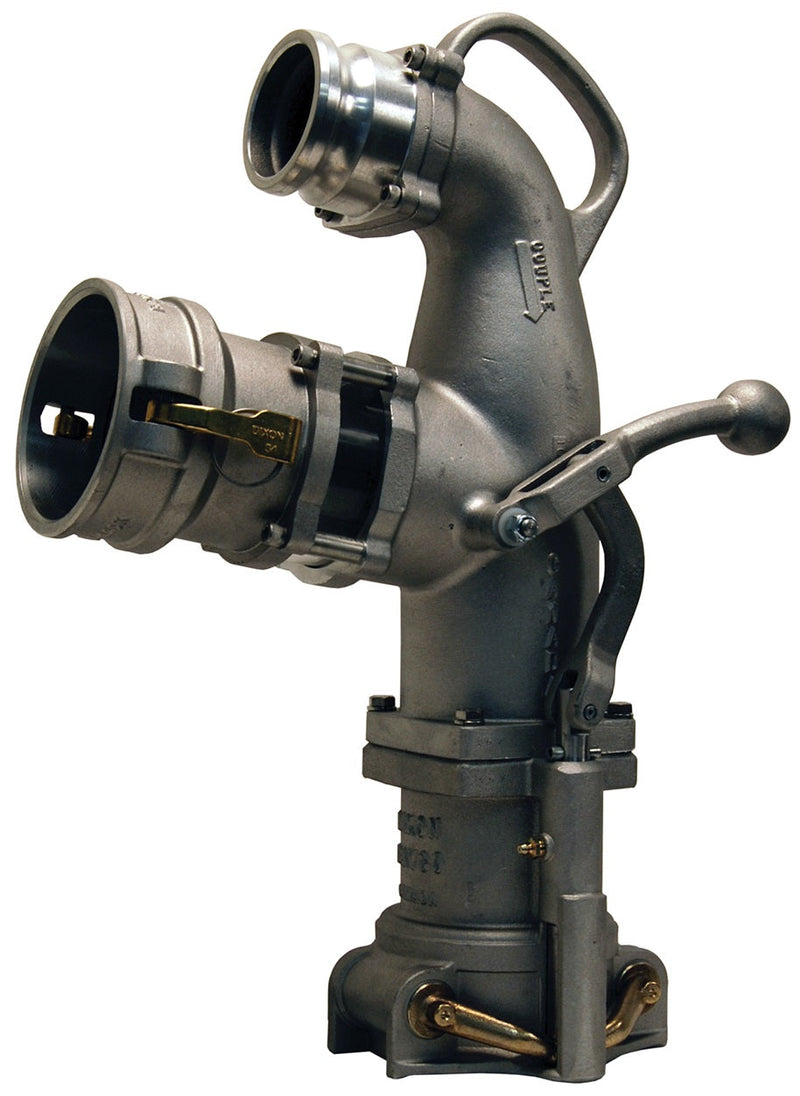

6430F by Dixon Valve | 6400-Series | Single Point Coaxial Delivery/Vapor Recovery Drop Elbow | Inlet: 3" Coupler Fuel | Outlet: 3" Male Vapor | Aluminum

6430F by Dixon Valve | 6400-Series | Single Point Coaxial Delivery/Vapor Recovery Drop Elbow | Inlet: 3" Coupler Fuel | Outlet: 3" Male Vapor | Aluminum

Save $99.27 Save $99.27
$966.07
$966.07 - $966.07
$966.07
$866.80
$866.80 - $866.80
$866.80

Dixon Valve
Tank Truck | 6400-Series | Single Point Coaxial Delivery/Vapor Recovery Drop Elbow

For single point vapor recovery only.
Specifications for Variant SKU: 6430F Dixon
Brand: Bayco
Series: 6400-Series
Shape (Orientation): Non-Standard Elbow
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Many parts are common throughout the Bayco elbow line, making any necessary maintenance a breeze.
  • Grease nipple enables the greasing of the lever stem, and Acetal bushings help keep everything moving smoothly, even in the harshest of conditions.
  • Bolt on inlets allow the inlet to be changed without having to worry about galling of threaded inlets.
  • Ball handle lever enables the operator to easily and positively engage the solid bronze locking arms, onto the underground adapter.
  • 3" male vapor outlet (top).
  • Comes assembled with 4" male inlet.
  • Top connection is the vapor outlet; lower connection is the fuel delivery inlet.
Construction:
  • Rugged modular cast aluminum construction.
  • Arms: solid bronze
  • Sight glass: acrylic
  • Seals: nitrile rubber
Notes:
  • Replacement inlets are available (Note: Coaxial inlets are not interchangeable with other Bayco elbow inlets.)
Part Number Inlet Outlet Height Ground Clearance Fuel Compatibility
6430 3" 3" Adapter Fuel 3" Male Vapor 23-3/4" 11-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6430F 3" Coupler Fuel 3" Male Vapor 23-3/4" 11-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6400 4" Adapter Fuel 3" Male Vapor 23-3/4" 11-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6400F 4" Coupler Fuel 3" Male Vapor 23-3/4" 11-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6400FNPT 4" Coupler Fuel 3" Male NPT Vapor 23-3/4" 11-3/4" Gasoline and diesel, up to E100 and B20 biofuels

6430X 3" Adapter Fuel 3" Male Vapor 26-3/4" 14-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6430XF 3" Coupler Fuel 3" Male Vapor 26-3/4" 14-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6400X 4" Adapter Fuel 3" Male Vapor 26-3/4" 14-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6400XF 4" Coupler Fuel 3" Male Vapor 26-3/4" 14-3/4" Gasoline and diesel, up to E100 and B20 biofuels
6400XFNPT 4" Coupler Fuel 3" Male NPT Vapor 26-3/4" 14-3/4" Gasoline and diesel, up to E100 and B20 biofuels
