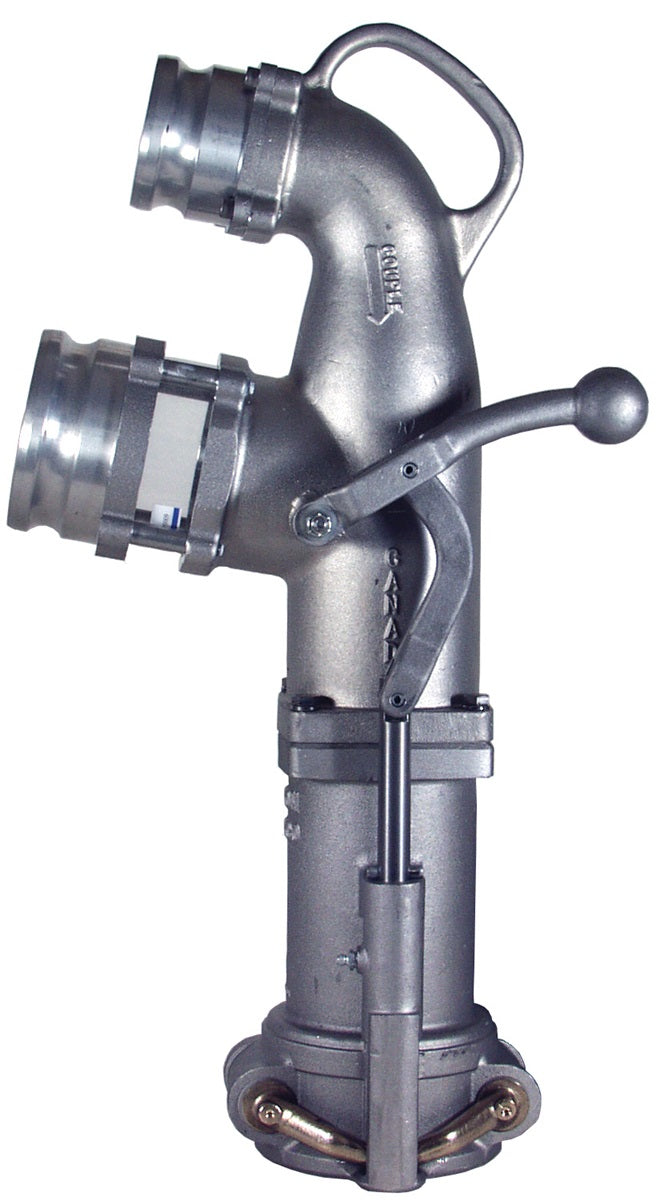

6430X by Dixon Valve | 6400-Series | Tall Single Point Coaxial Delivery/Vapor Recovery Drop Elbow | Inlet: 3" Adapter Fuel | Outlet: 3" Male Vapor | Aluminum

Save $97.73

$879.58

$879.58 - $879.58

$879.58

$781.85

$781.85 - $781.85

$781.85

Dixon Valve
Tank Truck | 6400-Series | Single Point Coaxial Delivery/Vapor Recovery Drop Elbow

For single point vapor recovery only.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 6430X Dixon
Brand:	Bayco
Series:	6400-Series
Shape (Orientation):	Non-Standard Elbow
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Many parts are common throughout the Bayco elbow line, making any necessary maintenance a breeze. Grease nipple enables the greasing of the lever stem, and Acetal bushings help keep everything moving smoothly, even in the harshest of conditions. Bolt on inlets allow the inlet to be changed without having to worry about galling of threaded inlets. Ball handle lever enables the operator to easily and positively engage the solid bronze locking arms, onto the underground adapter. 3" male vapor outlet (top). Comes assembled with 4" male inlet. Top connection is the vapor outlet; lower connection is the fuel delivery inlet.
Construction:
Rugged modular cast aluminum construction. Arms: solid bronze Sight glass: acrylic Seals: nitrile rubber
Notes:
Replacement inlets are available (Note: Coaxial inlets are not interchangeable with other Bayco elbow inlets.)


Part Number	Inlet	Outlet	Height	Ground Clearance	Fuel Compatibility
6430	3" 3" Adapter Fuel	3" Male Vapor	23-3/4"	11-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6430F	3" Coupler Fuel	3" Male Vapor	23-3/4"	11-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6400	4" Adapter Fuel	3" Male Vapor	23-3/4"	11-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6400F	4" Coupler Fuel	3" Male Vapor	23-3/4"	11-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6400FNPT	4" Coupler Fuel	3" Male NPT Vapor	23-3/4"	11-3/4"	Gasoline and diesel, up to E100 and B20 biofuels

6430X	3" Adapter Fuel	3" Male Vapor	26-3/4"	14-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6430XF	3" Coupler Fuel	3" Male Vapor	26-3/4"	14-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6400X	4" Adapter Fuel	3" Male Vapor	26-3/4"	14-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6400XF	4" Coupler Fuel	3" Male Vapor	26-3/4"	14-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
6400XFNPT	4" Coupler Fuel	3" Male NPT Vapor	26-3/4"	14-3/4"	Gasoline and diesel, up to E100 and B20 biofuels
