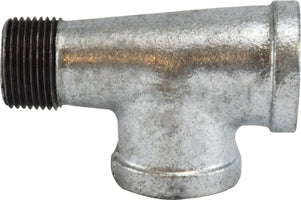

64364 (64-364) Midland Malleable Iron #150 Fitting - Service Tee (Street Tee) - 3/4" Female NPT x 3/4" Female NPT x 3/4" Male NPT - Galvanized Iron

64364 by Midland | Malleable Iron #150 Fitting | 3/4" Female NPT x 3/4" Female NPT x 3/4" Male NPT | Service (Street ) Tee | Galvanized Iron

Save $4.85 Save $4.85
$12.12
$12.12 - $12.12
$12.12
$7.27
$7.27 - $7.27
$7.27

Midland Industries
Malleable Iron #150 Fitting - Service Tee (Street Tee) - Female NPT x Female NPT x Male NPT - Galvanized Iron

All Fittings are 100% Pressure Tested to 300# Class.

Every fitting is subjected to an underwater fitness test to ensure the highest quality

Inventory @ Manufacturers Warehouse: 8 Units
Specifications for Variant SKU: 64364 Midland
Shape (Orientation): Tee
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, 3/4in Male NPT, Some Ends Match
Material(s): Galvanized Iron
Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ASTM A164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
Features:
  • Better molds reduce parting lines and rough edges resulting in better fluid flow.
  • By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting.
  • Saturated Steam Pressure: 150 PSI @ 350°F
  • Max Pressure: 300 PSI @ 150°F
  • Temp Range: -20°F to 350°F
Specifications:
  • Material: ASTM A 197 - Cuppla Malleable Iron, ASTM A 153 - Hot dipped galvanizing - Coating ASTM A164 LS
  • Dimensions: ANSI B 16.3 - Malleable Iron threaded fittings, ANSI B 16.14 - Ferrous Pipe Plugs, Bushings etc, ANSI B 16.39 - Malleable Iron threaded pipe unions.
  • Threads: ANSI B 2.1 or BS 21 ASME B1.20.1 - RoHS Compliant - Tapered Threads
Malleable Iron - ANSI B 16.3
F° Class 150 PSIG Sizes 1/4" - 1" 300# Sizes 1-1/4" - 2" 300# Sizes 2-1/4" - 3" 300#
-200 to 150 300 2000 1500 1000
200 265 1785 1350 910
250 225 1575 1200 825
300 185 1360 1050 735
366* 150 1150 900 650

* Permissible for service temperature up to 366°F, reflecting the temperature of saturated steam at 150 psig.
Part Number Size A B Approx. Weight
(Lbs.)
64363
(64-363)		 1/2" 1.12" 1.62" 0.31
64364
(64-364)		 3/4" 1.31" 1.89" 0.49
