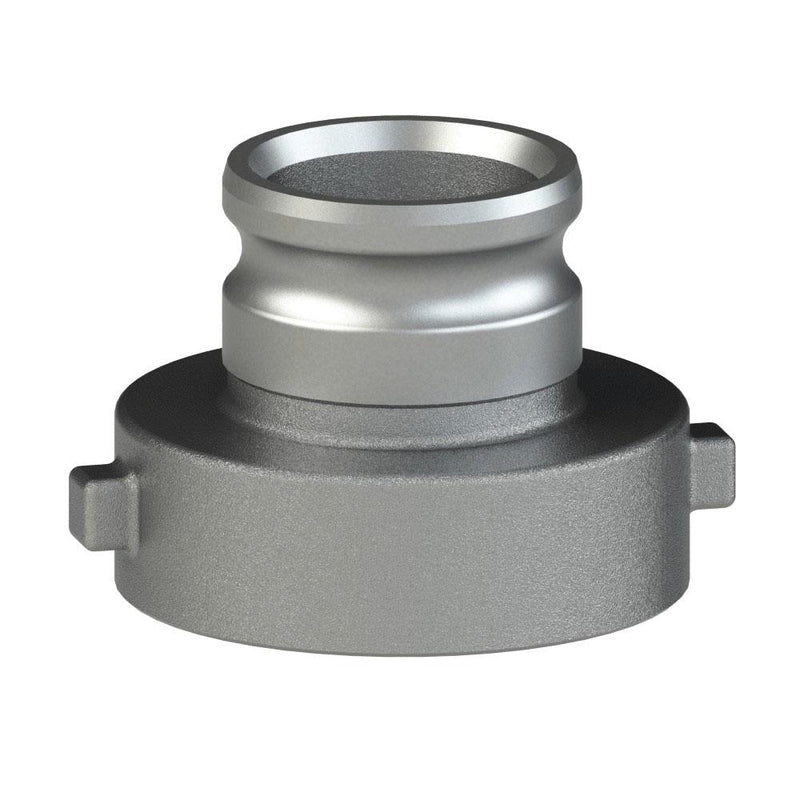

64463050 (TCA30X50) by PT-Coupling | Reducing Cam & Groove Adapter | Type TCA | 3" Adapter x 5" Female Tank Car Thread | 316 Stainless Steel

64463050 (TCA30X50) by PT-Coupling | Reducing Cam & Groove Adapter | Type TCA | 3" Adapter x 5" Female Tank Car Thread | 316 Stainless Steel

Save $314.83 Save $314.83
$848.15
$848.15 - $848.15
$848.15
$533.32
$533.32 - $533.32
$533.32

PT Coupling
Cam & Groove (Camlock) Adapter | Type TCA | Adapter x Female Tank Car Thread | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64463050 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 3in Male Cam & Groove, 5in Female Tank Car Thread
Material(s): 316 Stainless Steel
Features & Applications:
  • Pin lugs
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Female Tank
Car Thread		 Max. Allowable
Working Press.
(PSI)*
TCA30X50 64463050 3" 5" 75 PSI
TCA40X50 64464050 4" 5" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
