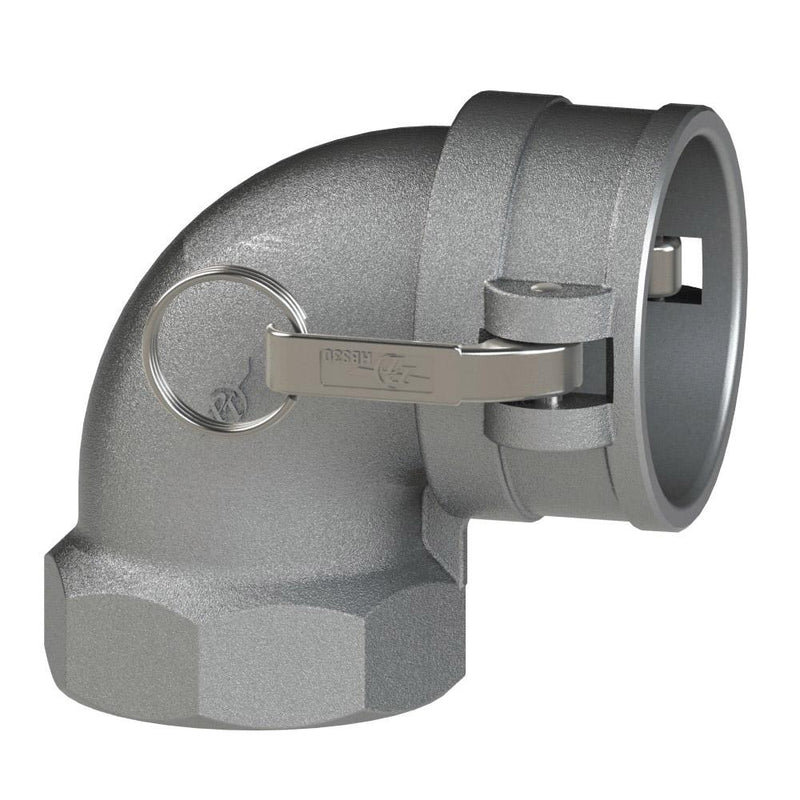

64481500 (15LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 1-1/2" Coupler x 1-1/2" Female NPT | 316 Stainless Steel | Buna-N Seal

Save $87.33

$235.28

$235.28 - $235.28

$235.28

$147.95

$147.95 - $147.95

$147.95

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64481500 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	1-1/2in Female Cam & Groove, 1-1/2in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
10LD	64481000	90°	1"	1"	250 PSI
15LD	64481500	90°	1-1/2"	1-1/2"	250 PSI
30LD	64483000	90°	3"	3"	200 PSI
40LD	64484000	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
