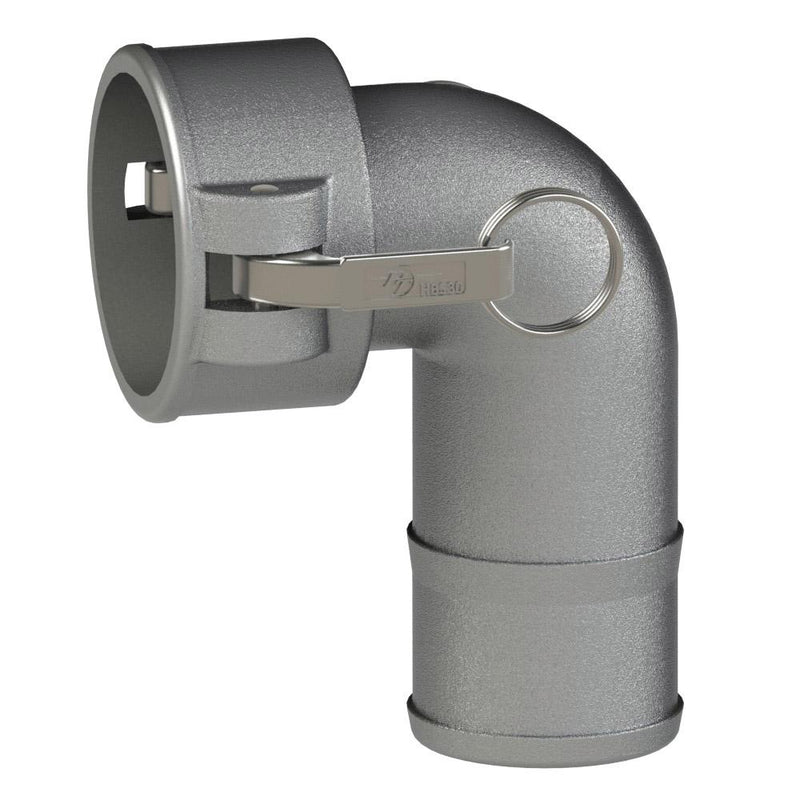

64501500 (15CL) by PT-Coupling | Cam & Groove Adapter | Type CL | 90° Elbow | 1-1/2" Coupler x 1-1/2" Hose Shank | 316 Stainless Steel | Buna-N Seal

64501500 (15CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 1-1/2" Coupler x 1-1/2" Hose Shank | 316 Stainless Steel | Buna-N Seal

Save $167.03 Save $167.03
$449.98
$449.98 - $449.98
$449.98
$282.95
$282.95 - $282.95
$282.95

PT Coupling
Cam & Groove (Camlock) Fitting | Type CL | 90° Elbow | Coupler x Hose Shank | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64501500 PT-Coupling
Shape (Orientation): 90 Degree Elbow
Cam Type: Type C
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Orientation Coupler
Size		 Hose Shank
Size		 Max. Allowable
Working Press.
(PSI)*
10CL 64501000 90° 1" 1" 250 PSI
12CL 64501200 90° 1-1/4" 1-1/4" 250 PSI
15CL 64501500 90° 1-1/2" 1-1/2" 250 PSI
20CL 64502000 90° 2" 2" 250 PSI
30CL 64503000 90° 3" 3" 200 PSI
40CL 64504000 90° 4" 4" 150 PSI
60CL 64506000 90° 6" 6" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
