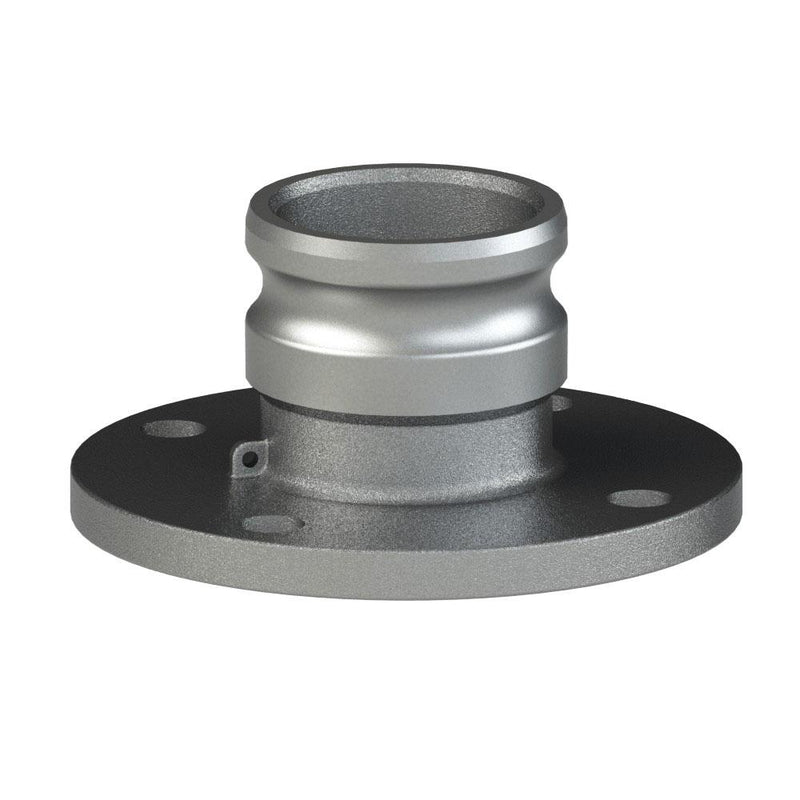

64521000 (PF10A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 1" Adapter x 1" 150# Pipe Flange | 316 Stainless Steel

64521000 (PF10A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 1" Adapter x 1" 150# Pipe Flange | 316 Stainless Steel

Save $78.60 Save $78.60
$211.75
$211.75 - $211.75
$211.75
$133.15
$133.15 - $133.15
$133.15

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64521000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1in Male Cam & Groove, 1in 150# Flange
Material(s): 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*		 Weight
PF10A 64521000 1" 1" 2.32" 0.88" 4.25" 0.63" 4 3.13" 250 PSI 1.75 lbs.
PF15A 64521500 1-1/2" 1-1/2" 3.56" 1.34" 5.00" 0.63" 4 3.88" 250 PSI 3.14 lbs.
PF20A 64522000 2" 2" 3.50" 1.72" 6.00" 0.75" 4 4.75" 250 PSI 4.43 lbs.
PF25A 64522500 2-1/2" 2-1/2" 3.63" 2.14" 7.00" 0.75" 4 5.50" 200 PSI 7.305 lbs.
PF25X40A 64522540 2-1/2" 4" 3.63" 2.14" 7.00" 0.75" 4 5.50" 150 PSI -
PF30A 64523000 3" 3" 3.69" 2.78" 7.50" 0.75" 4 6.00" 200 PSI 8.125 lbs.
PF40A 64524000 4" 4" 4.00" 3.78" 9.00" 0.75" 8 7.50" 150 PSI 12.34 lbs.
PF40X60A 64524060 4" 6" 4.00" 3.78" 11.00" 0.75" 8 7.50" 75 PSI -
PF50A 64525000 5" 5" 4.44" 4.79" 10.00" 0.88" 8 8.50" 75 PSI -
PF60A 64526000 6" 6" 4.50" 5.56" 11.00" 0.88" 8 9.50 75 PSI 23.34 lbs.
PF80A 64528000 8" 8" 5.38" 7.80" 13.5" 0.88" 8 11.75" 50 PSI 36.645 lbs.
PF100A 64529000 10" 10" 6.60" 10.00" 16.00" 1.00" 12 14.25" 50 PSI -
PF120A 64529200 12" 12" 7.00" 11.40" 19.00" 1.00" 12 17.00" 50 PSI -

** Denotes that these parts are made as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
