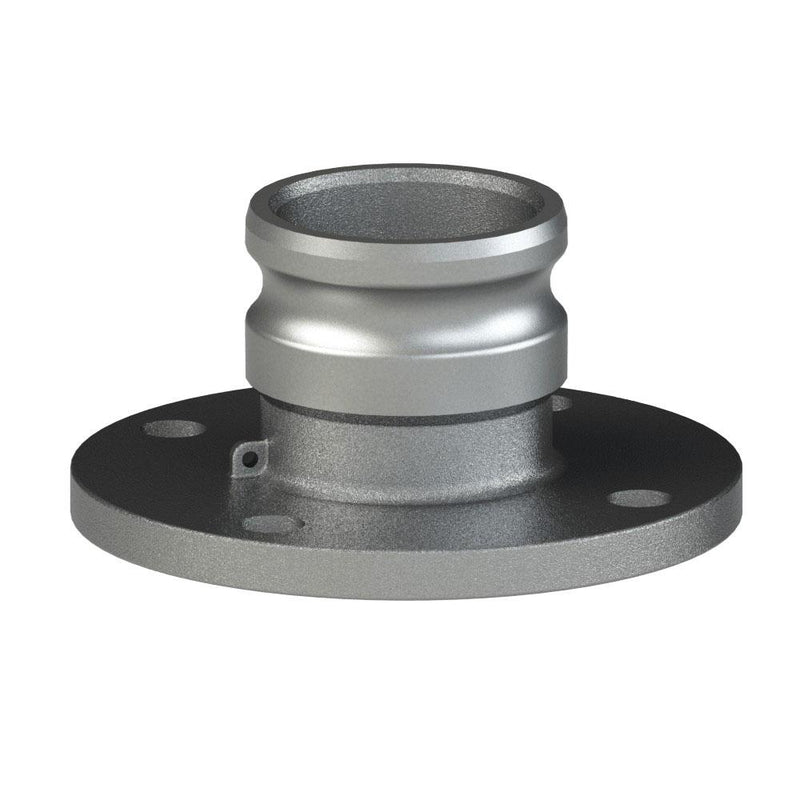

64522540 (PF25X40A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 2-1/2" Adapter x 4" 150# Pipe Flange | 316 Stainless Steel

64522540 (PF25X40A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 2-1/2" Adapter x 4" 150# Pipe Flange | 316 Stainless Steel

Save $288.40 Save $288.40
$776.93
$776.93 - $776.93
$776.93
$488.53
$488.53 - $488.53
$488.53

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64522540 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2-1/2in Male Cam & Groove, 4in 150# Flange
Material(s): 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*		 Weight
PF10A 64521000 1" 1" 2.32" 0.88" 4.25" 0.63" 4 3.13" 250 PSI 1.75 lbs.
PF15A 64521500 1-1/2" 1-1/2" 3.56" 1.34" 5.00" 0.63" 4 3.88" 250 PSI 3.14 lbs.
PF20A 64522000 2" 2" 3.50" 1.72" 6.00" 0.75" 4 4.75" 250 PSI 4.43 lbs.
PF25A 64522500 2-1/2" 2-1/2" 3.63" 2.14" 7.00" 0.75" 4 5.50" 200 PSI 7.305 lbs.
PF25X40A 64522540 2-1/2" 4" 3.63" 2.14" 7.00" 0.75" 4 5.50" 150 PSI -
PF30A 64523000 3" 3" 3.69" 2.78" 7.50" 0.75" 4 6.00" 200 PSI 8.125 lbs.
PF40A 64524000 4" 4" 4.00" 3.78" 9.00" 0.75" 8 7.50" 150 PSI 12.34 lbs.
PF40X60A 64524060 4" 6" 4.00" 3.78" 11.00" 0.75" 8 7.50" 75 PSI -
PF50A 64525000 5" 5" 4.44" 4.79" 10.00" 0.88" 8 8.50" 75 PSI -
PF60A 64526000 6" 6" 4.50" 5.56" 11.00" 0.88" 8 9.50 75 PSI 23.34 lbs.
PF80A 64528000 8" 8" 5.38" 7.80" 13.5" 0.88" 8 11.75" 50 PSI 36.645 lbs.
PF100A 64529000 10" 10" 6.60" 10.00" 16.00" 1.00" 12 14.25" 50 PSI -
PF120A 64529200 12" 12" 7.00" 11.40" 19.00" 1.00" 12 17.00" 50 PSI -

** Denotes that these parts are made as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
