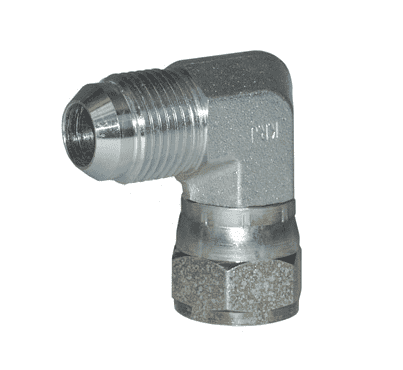

6500-8 Dixon Zinc Plated Steel 3/4"-16 Male 37 deg. JIC Flare x 3/4"-16 Female 37 deg. JIC Swivel 90 deg. Elbow

6500-8 Dixon Valve Zinc Plated Steel 3/4"-16 Male 37 deg. JIC Flare x 3/4"-16 Female 37 deg. JIC Swivel 90 deg. Elbow

Save $0.57 Save $0.57
$5.10
$5.10 - $5.10
$5.10
$4.53
$4.53 - $4.53
$4.53

SAE / JIC Fittings - Male 37 deg. JIC Flare x Female 37 deg. JIC Swivel 90 deg. Elbows - Zinc Plated Steel
Specifications for Variant SKU: 6500-8 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male JIC, 1/2in Female JIC
Material(s): Zink-Plated Steel
Features:
  • Reference SAE 070221.
Part Number Male 37 deg. JIC Flare Female 37 deg. JIC Swivel Working Pressure Weight (Lbs.)
6500-4 7/16"-20 7/16"-20 5000 PSI 0.0800
6500-6 9/16"-18 9/16"-18 5000 PSI 0.1400
6500-6-4 9/16"-18 7/16"-20 5000 PSI 0.1120
6500-6-8 9/16"-18 3/4"-16 4500 PSI 0.2200
6500-8 3/4"-16 3/4"-16 4500 PSI 0.2530
6500-8-6 3/4"-16 9/16"-18 4500 PSI 0.2250
6500-8-10 3/4"-16 7/8"-14 3500 PSI 0.3490
6500-10 7/8"-14 7/8"-14 3500 PSI 0.3200
6500-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.6090
6500-12-10 1-1/16"-12 7/8"-14 3500 PSI 0.5490
6500-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.9350
6500-20 1-5/8"-12 1-5/8"-12 2500 PSI 1.5000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
