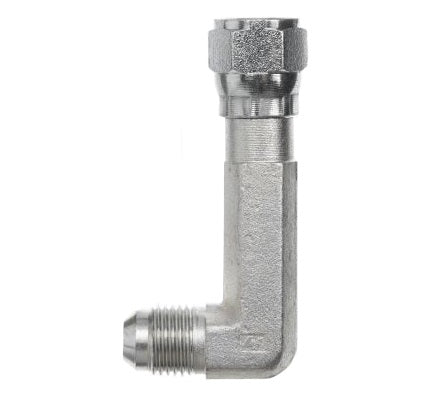

6500-L-04-04-FG by Brennan Inc. | -04 Male JIC x -04 Female JIC Swivel | 90° Elbow (Long) | Forged Steel

6500-L-04-04-FG by Brennan Inc. | -04 Male JIC x -04 Female JIC Swivel | 90° Elbow (Long) | Forged Steel

$8.40 - $8.40
$8.40
$10.67
$10.67 - $10.67
$10.67

Brennan Inc.
Tube Fittings & Adapters: 6500-L Male JIC x Female JIC Swivel 90° Elbow (Long)
Specifications for Variant SKU: 6500-L-04-04-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male JIC, 1/4in Female JIC, Some Ends Match
Material(s): Steel
Special Properties: Long Drop
Part Number Material Tube O.D. B1 SAE37° B2 SAE37° B1 Drill B2 Drill M Length M4 Length M6 Length C Hex Y Flats
6500-L-04-04-FG Steel 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 0.89" 1.81" 2.16" 0.562" 0.438"
6500-L-06-06-FG Steel 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 1.06" 2.16" 2.54" 0.688" 0.562"
6500-L-08-08-FG Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.25" 2.38" 2.81" 0.875" 0.750"
6500-L-10-10-FG Steel 5/8" 7/8-14" 7/8-14" 0.484" 0.484" 1.45" 2.57" 3.07" 1.000" 0.875"
6500-L-12-12-FG Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.660" 3.730" 4.300" 1.250" 1.062"
6500-L-16-16-FG Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 1.810" 4.400" 5.000" 1.500" 1.312"

6500-L-16-16-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 1.810" 4.400" 5.000" 1.500" 1.312"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
