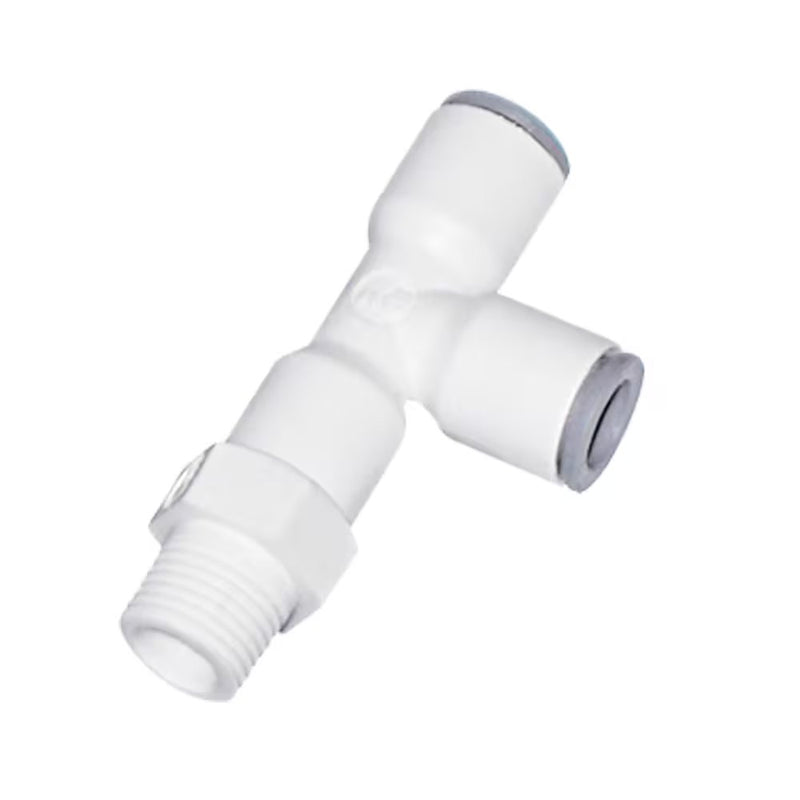

6503 56 14WP2 by Parker | LIQUIfit® Threaded Fitting | 1/4" Push-to-Connect x 1/4" Male NPTF Thread | Swivel | Tee | Nylon

6503 56 14WP2 by Parker | LIQUIfit® Threaded Fitting | 1/4" Push-to-Connect x 1/4" Male NPTF Thread | Swivel | Tee | Nylon | Pack of 10

Save $21.51 Save $21.51
$53.78
$53.78 - $53.78
$53.78
$32.27
$32.27 - $32.27
$32.27

by Parker Hannifin
LIQUIfit Fittings:6503 Swivel Run Tee Inch Tube to NPTF

Package Quantity: 10 Units

Specifications for Variant SKU: 6503 56 14WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6503 Series
Shape (Orientation): Tee
Material(s): Nylon, Stainless Steel
Seal Material(s): EPDM
Special Properties: Swivel, Silicone Free, Food Grade
Product Features:
  • Stainless steel grab ring
  • Bio-sourced nylon 11
  • EPDM D – seal
  • FDA compliant, NSF/ANSI 51 and NSF/ANSI/CAN 61
  • Silicone free
  • 100% leak tested in production
  • Date coding to guarantee quality and traceability
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Food
  • CO2
  • Vacuum
Pressure Range: Up to 230 PSI (16 bar)
Temperature Range: +35° to +200° F (+1.7° to +93.3° C)
Compatible Tubing:
  • Polyethylene
Part Number Tube Size C NPTF F H H1 L
6503 56 11WP2 1/4" 1/8" 1/2" 1.60" .88" .71"
6503 56 14WP2 1/4" 1/4" 9/16" 1.60" .88" .71"
6503 56 18WP2 1/4" 3/8" 3/4" 1.63" .90" .71"
6503 60 14WP2 3/8" 1/4" 3/4" 1.63" 1.18" 1.02"
6503 60 18WP2 3/8" 3/8" 3/4" 1.63" 1.18" 1.02"
6503 62 18WP2 1/4" 3/8" 15/16" 2.29" 1.55" 1.40"
6503 62 22WP2 1/2" 1/2" 15/16" 2.99" 1.59" 1.40"
