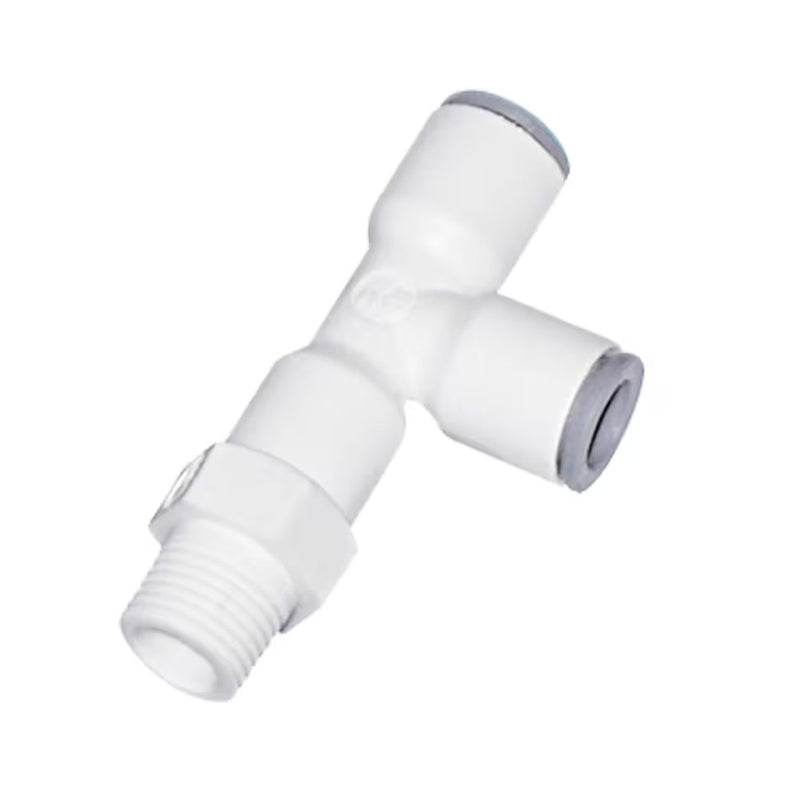

6503 62 22WP2 by Parker | LIQUIfit® Threaded Fitting | 1/2" Push-to-Connect x 1/2" Male NPTF Thread | Swivel | Tee | Nylon | Pack of 4

6503 62 22WP2 by Parker | LIQUIfit® Threaded Fitting | 1/2" Push-to-Connect x 1/2" Male NPTF Thread | Swivel | Tee | Nylon | Pack of 4

Save $9.33 Save $9.33
$32.16
$32.16 - $32.16
$32.16
$22.83
$22.83 - $22.83
$22.83

by Parker Hannifin
LIQUIfit Fittings:6503 Swivel Run Tee Inch Tube to NPTF

Package Quantity: 4 Units

Specifications for Variant SKU: 6503 62 22WP2 Parker | 4 |
Brand: LIQUIfit®
Series: 6503 Series
Shape (Orientation): Tee
Material(s): Nylon, Stainless Steel
Seal Material(s): EPDM
Special Properties: Swivel, Silicone Free, Food Grade
Product Features:
  • Stainless steel grab ring
  • Bio-sourced nylon 11
  • EPDM D – seal
  • FDA compliant, NSF/ANSI 51 and NSF/ANSI/CAN 61
  • Silicone free
  • 100% leak tested in production
  • Date coding to guarantee quality and traceability
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Food
  • CO2
  • Vacuum
Pressure Range: Up to 230 PSI (16 bar)
Temperature Range: +35° to +200° F (+1.7° to +93.3° C)
Compatible Tubing:
  • Polyethylene
Part Number Tube Size C NPTF F H H1 L
6503 56 11WP2 1/4" 1/8" 1/2" 1.60" .88" .71"
6503 56 14WP2 1/4" 1/4" 9/16" 1.60" .88" .71"
6503 56 18WP2 1/4" 3/8" 3/4" 1.63" .90" .71"
6503 60 14WP2 3/8" 1/4" 3/4" 1.63" 1.18" 1.02"
6503 60 18WP2 3/8" 3/8" 3/4" 1.63" 1.18" 1.02"
6503 62 18WP2 1/4" 3/8" 15/16" 2.29" 1.55" 1.40"
6503 62 22WP2 1/2" 1/2" 15/16" 2.99" 1.59" 1.40"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
