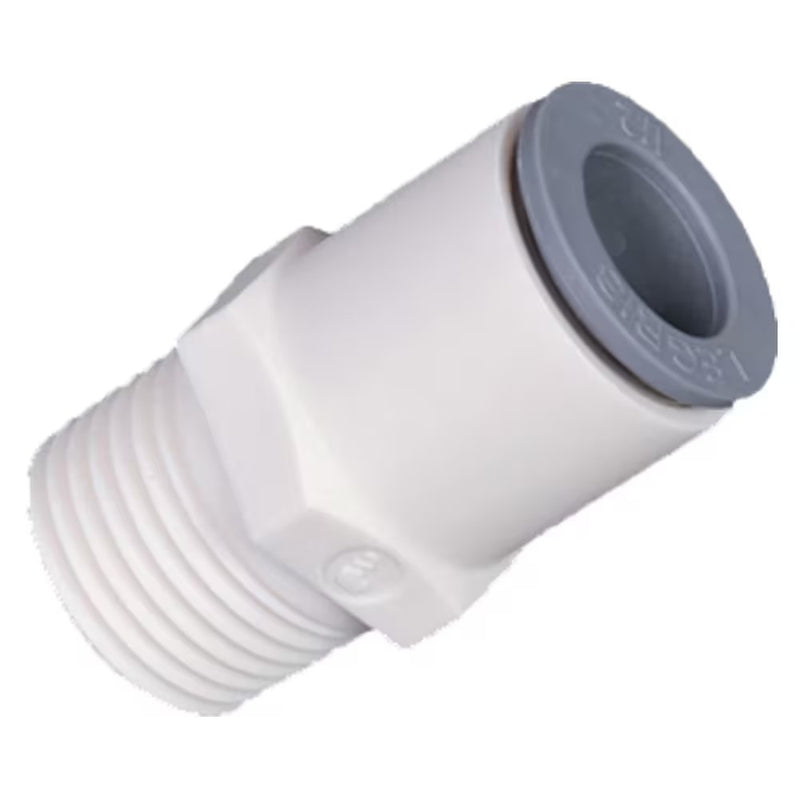

6505 04 13WP2 by Parker | Legris Stud Fitting | 4 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | Straight | Polymer | Pack of 10

6505 04 13WP2 by Parker | Legris Stud Fitting | 4 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | Straight | Polymer | Pack of 10

Save $18.93 Save $18.93
$47.33
$47.33 - $47.33
$47.33
$28.40
$28.40 - $28.40
$28.40

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6505 Stud Fitting, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6505 04 13WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6505 Series
Shape (Orientation): Straight
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C F F1 H Kg
6505 04 10WP2 4 mm 1/8" 11 mm 3 mm 18 mm .003 Kg
6505 04 13WP2 4 mm 1/4" 14 mm 3 mm 18 mm .004 Kg
6505 06 10WP2 6 mm 1/8" 11 mm 4 mm 18 mm .002 Kg
6505 06 13WP2 6 mm 1/4" 14 mm 4 mm 18 mm .004 Kg
6505 08 10WP2 8 mm 1/8" 17 mm 6 mm 20 mm .004 Kg
6505 08 13WP2 8 mm 1/4" 14 mm 6 mm 20 mm .004 Kg
6505 08 17WP2 8 mm 3/8" 17 mm 6 mm 20 mm .005 Kg
6505 10 13WP2 10 mm 1/4" 17 mm 7 mm 21.5 mm .005 Kg
6505 10 17WP2 10 mm 3/8" 19 mm 7 mm 21.5 mm .007 Kg
6505 10 21WP2 10 mm 1/2" 22 mm 7 mm 21.5 mm .010 Kg
6505 12 17WP2 12 mm 3/8" 19 mm 9 mm 24.5 mm .008 Kg
6505 12 21WP2 12 mm 1/2" 22 mm 9 mm 24.5 mm .012 Kg
