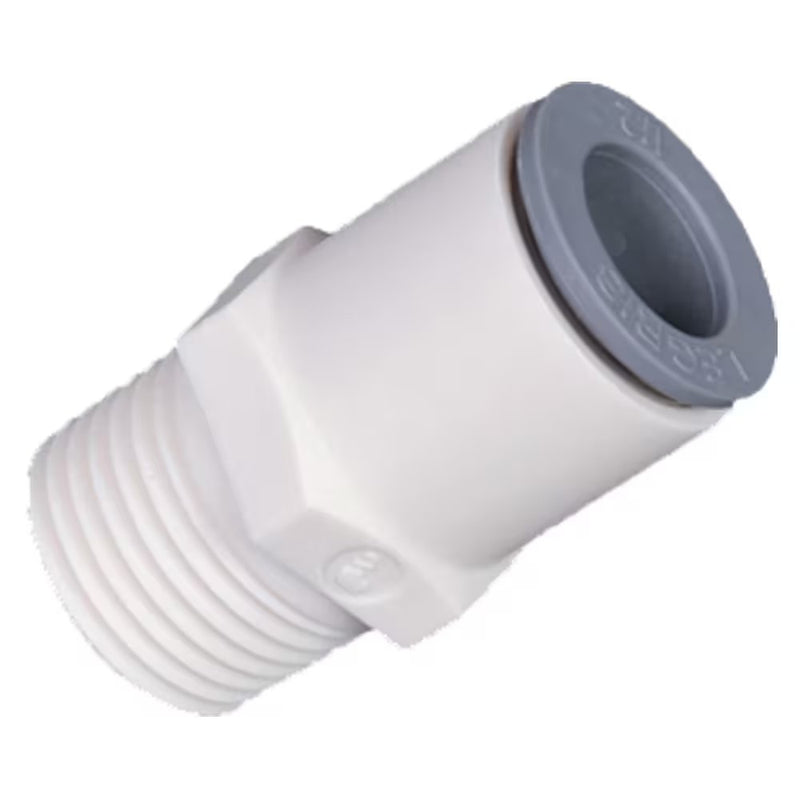

6505 10 17WP2 by Parker | Legris Stud Fitting | 10 mm Tube Size x 3/8" Male BSPT Thread | 19 mm Hex | Straight | Polymer | Pack of 10

Save $30.67

$76.67

$76.67 - $76.67

$76.67

$46.00

$46.00 - $46.00

$46.00

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6505 Stud Fitting, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6505 10 17WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6505 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	C	F	F1	H	Kg
6505 04 10WP2	4 mm	1/8"	11 mm	3 mm	18 mm	.003 Kg
6505 04 13WP2	4 mm	1/4"	14 mm	3 mm	18 mm	.004 Kg
6505 06 10WP2	6 mm	1/8"	11 mm	4 mm	18 mm	.002 Kg
6505 06 13WP2	6 mm	1/4"	14 mm	4 mm	18 mm	.004 Kg
6505 08 10WP2	8 mm	1/8"	17 mm	6 mm	20 mm	.004 Kg
6505 08 13WP2	8 mm	1/4"	14 mm	6 mm	20 mm	.004 Kg
6505 08 17WP2	8 mm	3/8"	17 mm	6 mm	20 mm	.005 Kg
6505 10 13WP2	10 mm	1/4"	17 mm	7 mm	21.5 mm	.005 Kg
6505 10 17WP2	10 mm	3/8"	19 mm	7 mm	21.5 mm	.007 Kg
6505 10 21WP2	10 mm	1/2"	22 mm	7 mm	21.5 mm	.010 Kg
6505 12 17WP2	12 mm	3/8"	19 mm	9 mm	24.5 mm	.008 Kg
6505 12 21WP2	12 mm	1/2"	22 mm	9 mm	24.5 mm	.012 Kg
