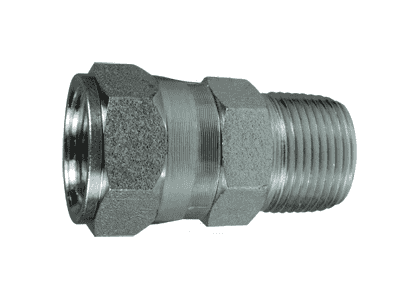

6505-20-20 Dixon Zinc Plated Steel 1-5/8"-12 37 deg. JIC Female Swivel x 1-1/4"-11-1/2 Male NPTF

6505-20-20 Dixon Valve Zinc Plated Steel 1-5/8"-12 37 deg. JIC Female Swivel x 1-1/4"-11-1/2 Male NPTF

Save $2.51 Save $2.51
$22.58
$22.58 - $22.58
$22.58
$20.07
$20.07 - $20.07
$20.07

SAE / JIC Fittings - SAE 37 deg. JIC Female Swivel x Male NPTF - Zinc Plated Steel
Specifications for Variant SKU: 6505-20-20 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. JIC Female Swivel Male NPTF Pipe Working Pressure Weight (Lbs.)
6505-4-2 7/16"-20 1/8"-27 4500 PSI 0.0420
6505-4-4 7/16"-20 1/4"-18 4500 PSI 0.0790
6505-5-4 1/2"-20 1/4"-18 4000 PSI 0.0800
6505-6-4 9/16"-18 1/4"-18 4000 PSI 0.0800
6505-6-6 9/16"-18 3/8"-18 4000 PSI 0.1070
6505-8-6 3/4"-16 3/8"-18 4000 PSI 0.1300
6505-10-8 7/8"-14 1/2"-14 3000 PSI 0.2470
6505-10-12 7/8"-14 3/4"-14 2500 PSI 0.3000
6505-12-8 1-1/16"-12 1/2"-14 3000 PSI 0.3080
6505-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.3500
6505-16-12 1-5/16"-12 3/4"-14 2500 PSI 0.4700
6505-16-16 1-5/16"-12 1"-1/2 2000 PSI 0.5350
6505-20-20 1-5/8"-12 1-1/4"-11-1/2 1150 PSI 0.7660
6505-24-24 1-7/8"-12 1-1/2"-11-1/2 1000 PSI N/A
6505-32-32 2-1/2"-12 2"-11-1/2 1000 PSI 0.9100
