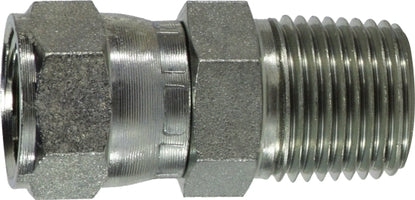

650564 (6505-6-4) Midland Hydraulic JIC Swivel to Male Pipe Adapter - 9/16-18 Female JIC 37° Flare x 1/4" Male Pipe - Steel

650564 by Midland | Hydraulic JIC Swivel to Male Pipe | 9/16-18 Female JIC 37° Flare x 1/4" Male Pipe | Adapter | Steel

Save $1.71 Save $1.71
$4.27
$4.27 - $4.27
$4.27
$2.56
$2.56 - $2.56
$2.56

Midland Industries
Hydraulic Adapters: JIC Swivel to Male Pipe Adapter - Steel

Inventory @ Manufacturers Warehouse: 29 Units
Specifications for Variant SKU: 650564 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 1/4in Male NPT
Material(s): Steel
Technical Info:
Crossover Series:
6505 2018 F6X 1211 9100R
Part Number Female JIC 37° Flare
(1)		 Female JIC 37° Flare
Thread
(1)		 Male Pipe
(2)
650524 1/8" 5/16-24 1/4"
650542
(6505-4-2)		 1/4" 7/16-20 1/8"
650544
(6505-4-4)		 1/4" 7/16-20 1/4"
650546
(6505-4-6)		 1/4" 7/16-20 3/8"
650552 5/16" 1/2-20 1/8"
650554 5/16" 1/2-20 1/4"
650556 5/16" 1/2-20 3/8"
650562 3/8" 9/16-18 1/8"
650564
(6505-6-4) 		3/8" 9/16-18 1/4"
650566
(6505-6-6) 		3/8" 9/16-18 3/8"
650586
(6505-8-6) 		1/2" 3/4-16 3/8"
650588
(6505-8-8) 		1/2" 3/4-16 1/2"
6505-10-06 5/8" 7/8-14 3/8"
6505108 5/8" 7/8-14 1/2"
65051012 5/8" 7/8-14 3/4"
6505128 3/4" 1-1/16-12 1/2"
65051212
(6505-12-12) 		3/4" 1-1/16-12 3/4"
65051612
 1" 1-5/16-12 3/4"
65051616
(6505-16-16)		 1" 1-5/16-12 1"
65052424
(6505-24-24)		 1-1/2" 1-7/8-12 1-1/2"
65053232 2" 2-1/2-12 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
